78 Smart

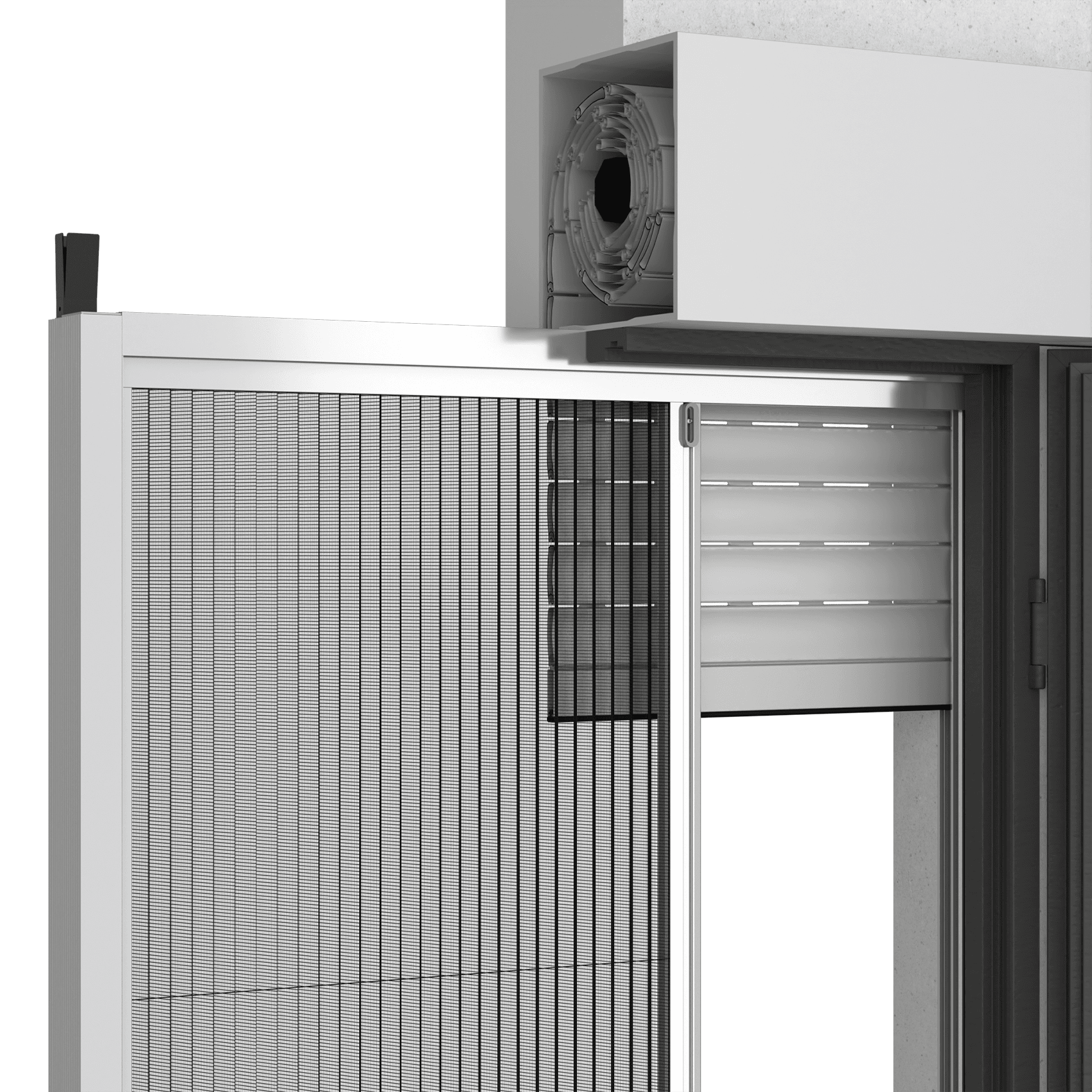

Sliding aluminum fly screen side-scrolling, ideal for windows and doors.

The flush-mounted installation includes a 78 mm spacer that houses both the fly screen and the guide for the shutter. It features a black pleated mesh has standard, but you can also request a gray version. The bottom guide has a height of 15 mm. Single or double shutter, depending on your design you can also choose the position of the handle, central or asymmetrical, and magnetic closure.

Dimensions

Spacer 78, front roller box/end-side, roller box and handle (dimensions in mm)

Spacer 78, front roller box/end-side and roller box (dimensions in mm)

Handle and bottom guide dimensions (dimensions in mm)

Spacer 78, front roller box/end-side, end-side and bottom guide (dimensions in mm)

Spacer 78, front roller box/end-side, end-side, handle and bottom guide (dimensions in mm)

Spacer 78, front roller box/end-side, end-side and top guide (dimensions in mm)

Sheeting and measures

Towels	Cod.	Description	MAX
Towels	Cod.	Description	MAX		PGN	Black Pleated Mesh	1800x3200
	PGR	Grey Pleated Mesh	1800x3200

Towels	Cod.	Description	MAX
Towels	Cod.	Description	MAX		PGN	Black Pleated Mesh	3600x3200
	PGR	Grey Pleated Mesh	3600x3200

Colours

Optional / Notes

OPTIONAL

Fixed handles

To replace the foldable handles, fixed handles can be ordered upon request.

Lower bottom guide

The “Lower bottom guide” has a height of 8.5mm (the standard bottom guide has a height of 15mm) and is only available in black. With this optional the total size of the fly screen increases to 40mm.
