Perla

Home > Insect screening > Roller Line > Perla

Roller Line

Perla

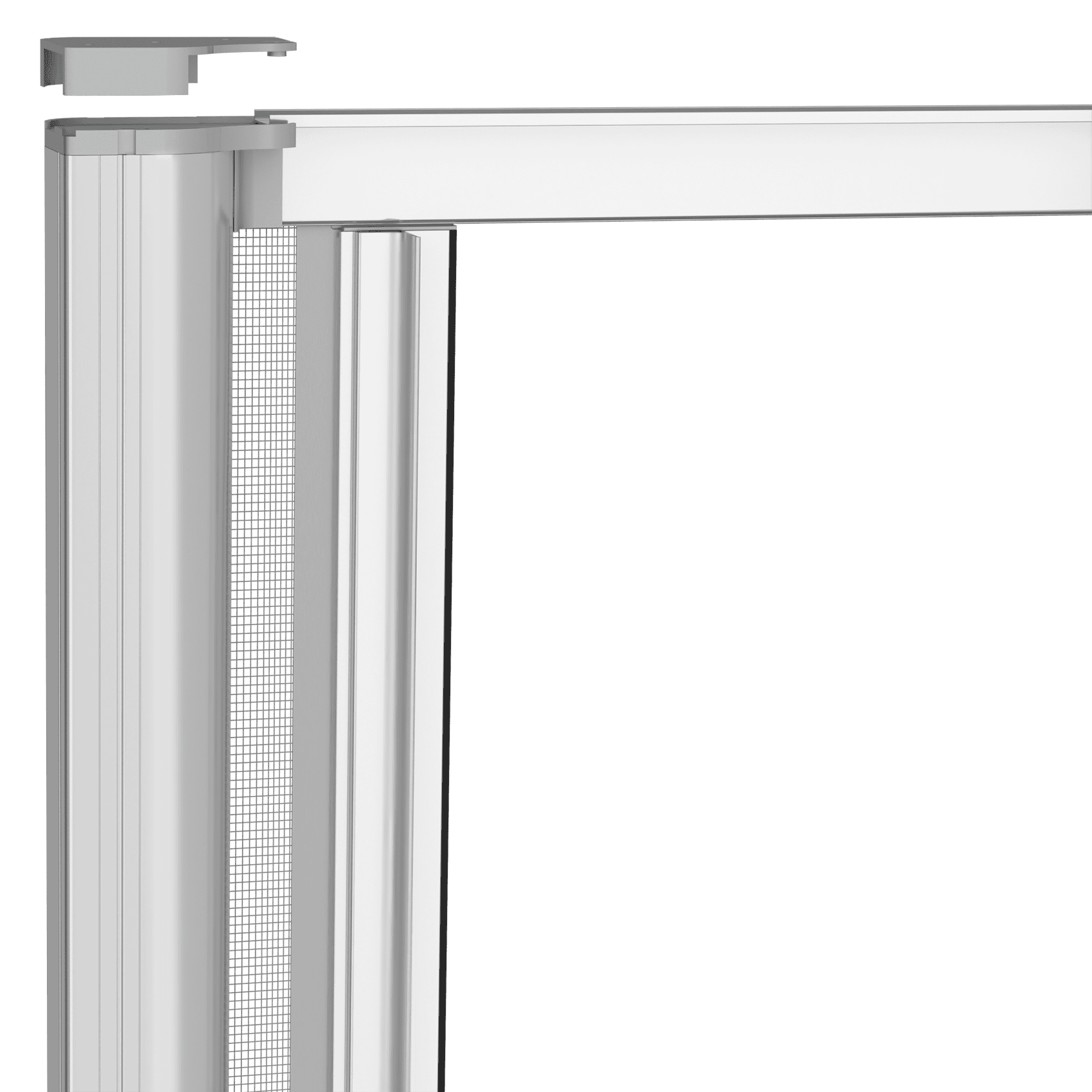

Single or double shutter roll-up fly screen with double plate and spring operation.

A masterpiece of design
and functionality.

The rounded style of the box combines elegantly with the aluminium profiles and plastic components.

Choose between 50 mm and 40 mm box for a refined and versatile design.

A smooth sliding is ensured by 38 mm rails that accommodate the mesh. A clutch can be installed on request.

The magnetic terminal profile ensures a secure closing and prevents accidental openings in case of strong wind.

Also available with two shutters!

Perla is available with either one or two shutters, with central or asymmetrical opening.
As standard in the two-shutter version, the Closing Block system is integrated in one of the two handles.

The installation is quick and easy.

Installation tutorial for Perla with 1 shutter.

magnetic closure
Quick installation
Spring loaded system
Double plate
Standard glass fiber mesh welded to the edges

Dimensions

Dimensions of plate, header and 50 mm roller box (standard) (dimensions in mm)

Dimensions of plate, header and 40 mm roller box (on request) (dimensions in mm)

Guide and handle dimensions (dimensions in mm)

Handle and end-side dimensions (dimensions in mm)

Guide and end-side dimensions (dimensions in mm)

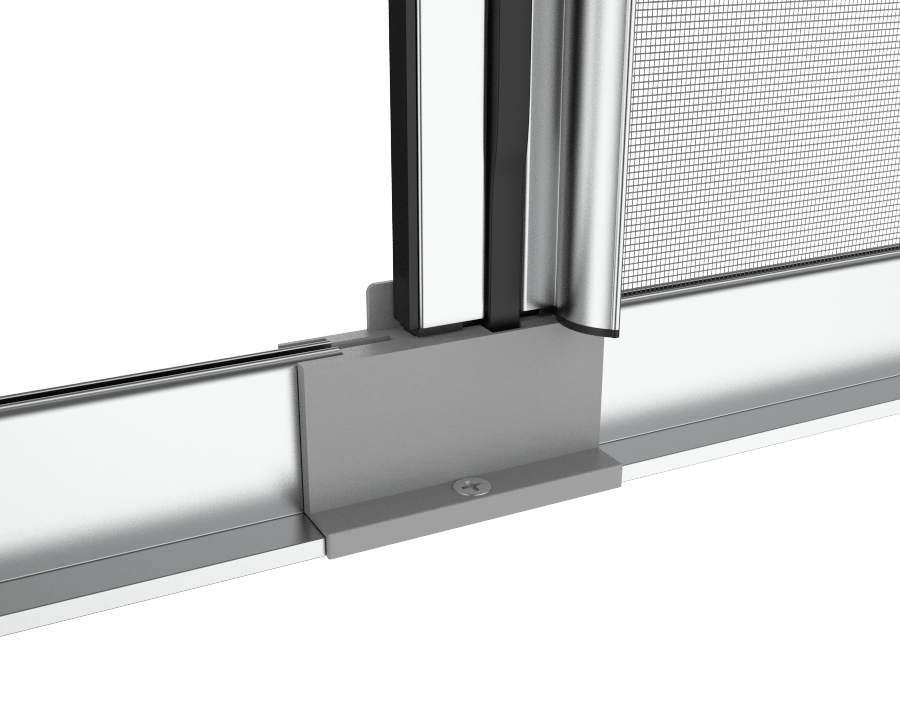

Central foot dimensions for 2-shutters version (dimensions in mm)

Dimensions of coupled handles and centre foot for 2-shutters version (dimensions in mm)

Dimensions of coupled handles and Closing Block handle (standard on one of the two shutters) (dimensions in mm)

Sheeting and measures

Towels	Cod.	Description	MIN	MAX
Towels	Cod.	Description	MIN	MAX	0	Grey Fibreglass Mesh	400x800	1400x2400
	RNE	Black Fibreglass Mesh	400x800	1400x2400
	BN	Striped Black-White Fibreglass Mesh	400x800	1400x2400
	PAG	Thin Grey Fibreglass Mesh	400x800	1400x2400
	PAN	Thin Black Fibreglass Mesh	400x800	1400x2400
	TUG	Thin Grey Pet Screen Mesh	400x800	1000x2200
	TUN	Thin Black Pet Screen Mesh	400x800	1000x2200
	POL	Anti-Pollen Mesh	400x800	1200x2400
	TLT	Transparent Crystal Fabric	400x800	1000x2200
	OBM	White-Brown Blackout Fabric	400x800	1200x2400
	OSC	White Blackout Fabric	400x800	1200x2400
	OSB	Beige Blackout Fabric	400x800	1200x2400
	OSG	Grey Blackout Fabric	400x800	1200x2400
	SCC	Light Filtering Screen	400x800	1200x2400
	SCS	Dark Filtering Screen	400x800	1200x2400

Towels	Cod.	Description	MIN	MAX
Towels	Cod.	Description	MIN	MAX	0	Grey Fibreglass Mesh	400x800	2000x2600
	RNE	Black Fibreglass Mesh	400x800	2000x2600
	BN	Striped Black-White Fibreglass Mesh	400x800	2000x2600
	PAG	Thin Grey Fibreglass Mesh	400x800	2000x2600
	PAN	Thin Black Fibreglass Mesh	400x800	2000x2600
	TUG	Thin Grey Pet Screen Mesh	400x800	1800x1400
	TUN	Thin Black Pet Screen Mesh	400x800	1800x1400
	POL	Anti-Pollen Mesh	400x800	2000x1800
	TLT	Transparent Crystal Fabric	400x800	1600x1200
	OBM	White-Brown Blackout Fabric	400x800	2000x1800
	OSC	White Blackout Fabric	400x800	2000x1800
	OSB	Beige Blackout Fabric	400x800	2000x1800
	OSG	Grey Blackout Fabric	400x800	2000x1800
	SCC	Light Filtering Screen	400x800	2000x1800
	SCS	Dark Filtering Screen	400x800	2000x1800

Colours

Standard

901
9010 Glossy White
Accessories

White
9FG
9010 Rough White
Accessories

White
101
1013 Glossy Ivory
Accessories

Ivory
F1G
1013 Rough Ivory
Accessories

Ivory
801
8017 Glossy Brown
Accessories

Brown
MMU
Rough Musk Brown
Accessories

Brown
APR
Painted Silver
Accessories

Silver
71G
7001 Rough Grey
Accessories

Silver
NOP
9005 Matt Black
Accessories

Black
BVE
Painted Bronze
Accessories

Bronze
F35
Dark Bronze
Accessories

Bronze
60P
6005 Matt Green
Accessories

Black

Marble

GRA
Marble Grey
Accessories

Black
MRA
Marble Brown
Accessories

Black
VRA
Marble Green
Accessories

Black

Special

91P
9010 Matt White
Accessories

White
10P
1013 Matt Ivory
Accessories

Ivory
81P
8017 Matt Brown
Accessories

Brown
TMD
Dark Brown
Accessories

Black
0BX
Anodised Bronze
Accessories

Bronze
0AX
Anodised Silver
Accessories

Silver
701
7016 Anthracite Grey
Accessories

Black
GFS
Dark Iron Grey
Accessories

Black
RBU
Hammered Copper
Accessories

Black

Wood

PCN
Matt Natural Cherry
Accessories

Brown
D3R
Rough Shot Cherry
Accessories

Brown
C21
Shot Atlantic Cherry
Accessories

Brown
N10
Rough Walnut
Accessories

Brown
PNS
Matt Dark Natural Walnut
Accessories

Brown
DR1
Bright Renolit
Accessories

Brown
DRS
Dark Renolit
Accessories

Brown
C24
Bright Knotty Pine
Accessories

Brown
DBE
White Wood
Accessories

Ivory

Known colors

In case the colour in the colour chart is no longer in stock, the order will be processed within 15 working days from the date of order confirmation and handled with the corresponding color price according to the reference.

In case the colour requested is outside the colour chart, the order will be processed within 25 working days from the date of order confirmation and handled with the relevant surcharges.

Optional / Notes

OPTIONAL

Clutched Mechanism

It slows down the winding of the net when closing the fly screen. By inserting the clutch, the minimum width measurement must be increased by 200 mm.

Closing Block

Avoid accidental openings by locking the fly screen handle with the help of a control bar.

Asymmetrical aperture (2 shutters)

ACCESSORIES

Roller box clips

Roller box attachment with clips only available with 40 mm box. Fixing clips included in the accessories bag as standard.

NOTE

Accessories and headers

50 mm roller box will be supplied in the same colour as the fly screen for the following colours: bronze, silver, white 9010, ivory 1013, brown 8017, matt black, green 6005, red 3003. For painted/sublimated wood colours: they will always be brown. For special RAL colours: they will always be black 40 mm roller box only available in black.
