40 Vertical
Vertical roller fly screen for windows. 40mm fitted installation without spacer and front panel. Find out more!
40 Vertical is the revolutionary fitted fly screen: Minimalist design, smart installation and maximum versatility.
MAGLAC – Magnetic Elegance.
The patented PRIMED magnetic tassel.
Thanks to the magnetic attachment to the side rails, the tassel always stays in position, eliminating the annoying noise caused by the tassel hitting the frame in the wind and improving overall user comfort.
The squared roller box combines elegantly with the aluminium profiles and plastic components.
Handle bar.
A touch of elegance and practicality.
40 Vertical handle bar is a small masterpiece of design.
Rounded lines, smooth and ergonomic profile that improves grip.
40 Vertical opens and closes with a simple touch: a turn of the handle activates the smooth sliding of the mesh, ensuring a practical and elegant user experience.
40 mm fitted installation.
Wall installation: invisibility that furnishes.
Install 40 Vertical directly into the wall recess for a seamless, built-in finish. It stays completely out of sight while providing all the protection you need.
Frame-mounted installation: simplicity that makes the difference.
Do you prefer to mount it directly on the frame? With dedicated inserts, installation becomes even simpler and faster.
Perfect sliding, with no compromises.
The side rails with handle cap ensure that the mesh slides smoothly.
Essential, minimalist and designed to last over time.
Installing it is a piece of cake.
Installation in a few steps:
fix the inserts, install the squared roller box, hang the guides.
No stress, no complications.
Intelligent design that simplifies life.
HORIZONTAL section/Width
Ordering size = Clear dimension + 78 mm
(including a tolerance of 2 mm)
VERTICAL section/HEIGHT
Ordering size = Clear dimension + 43 mm
(including a tolerance of 2 mm)
The horizontal and vertical sections highlight the ordering size of the fly screen in relation to the clear size, providing a clear reference for precise, made-to-measure installation.
Optionals.
PUSH closing system.
Where design meets precision.
With the optional PUSH handle, you can open and close the fly screen with a simple and precise movement.
In this configuration, the handle bar is equipped with an inclined windproof brush – a discreet solution that enhances insulation without compromising style.
-
Quick installation -
Spring loaded system -
Single plate
Dimensions

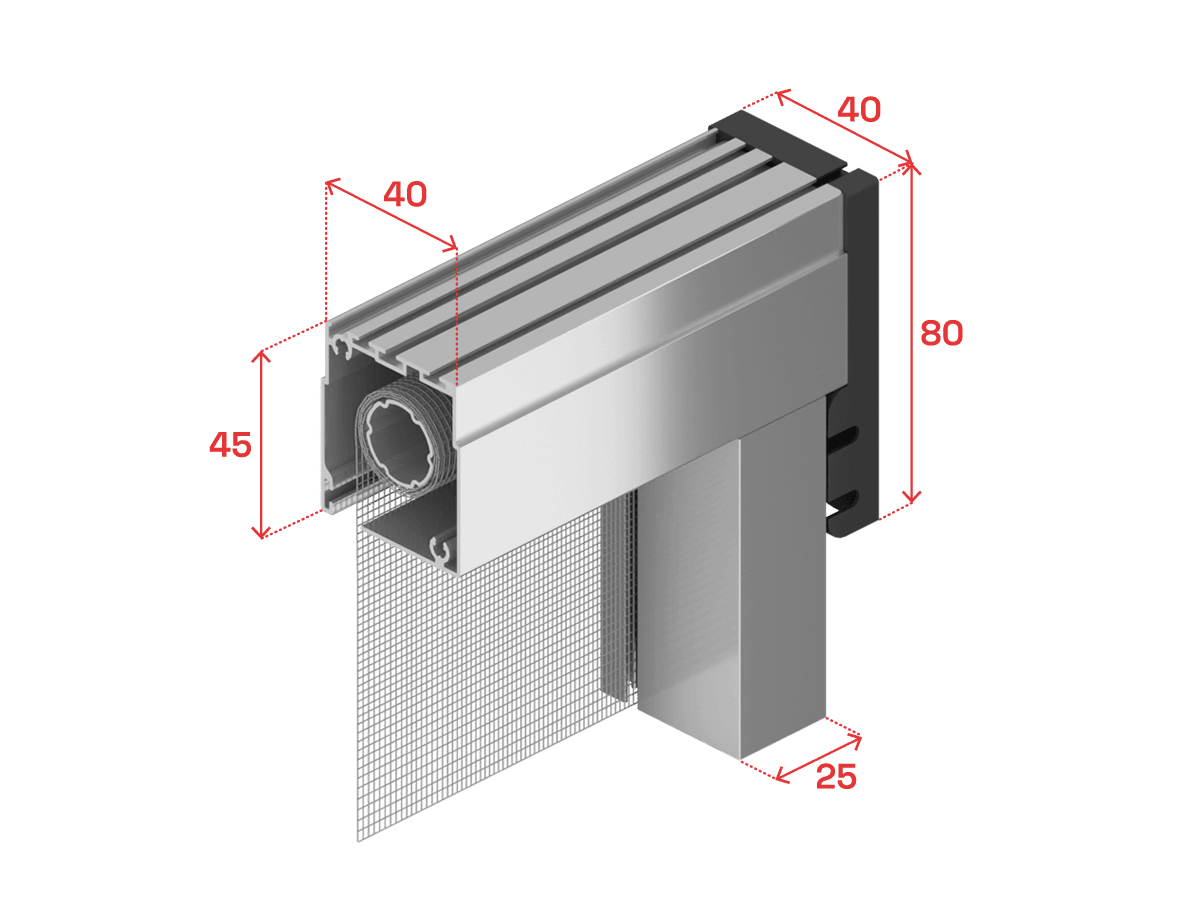

Box, handle bar, box end cap and side rail dimensions (dimensions in mm).

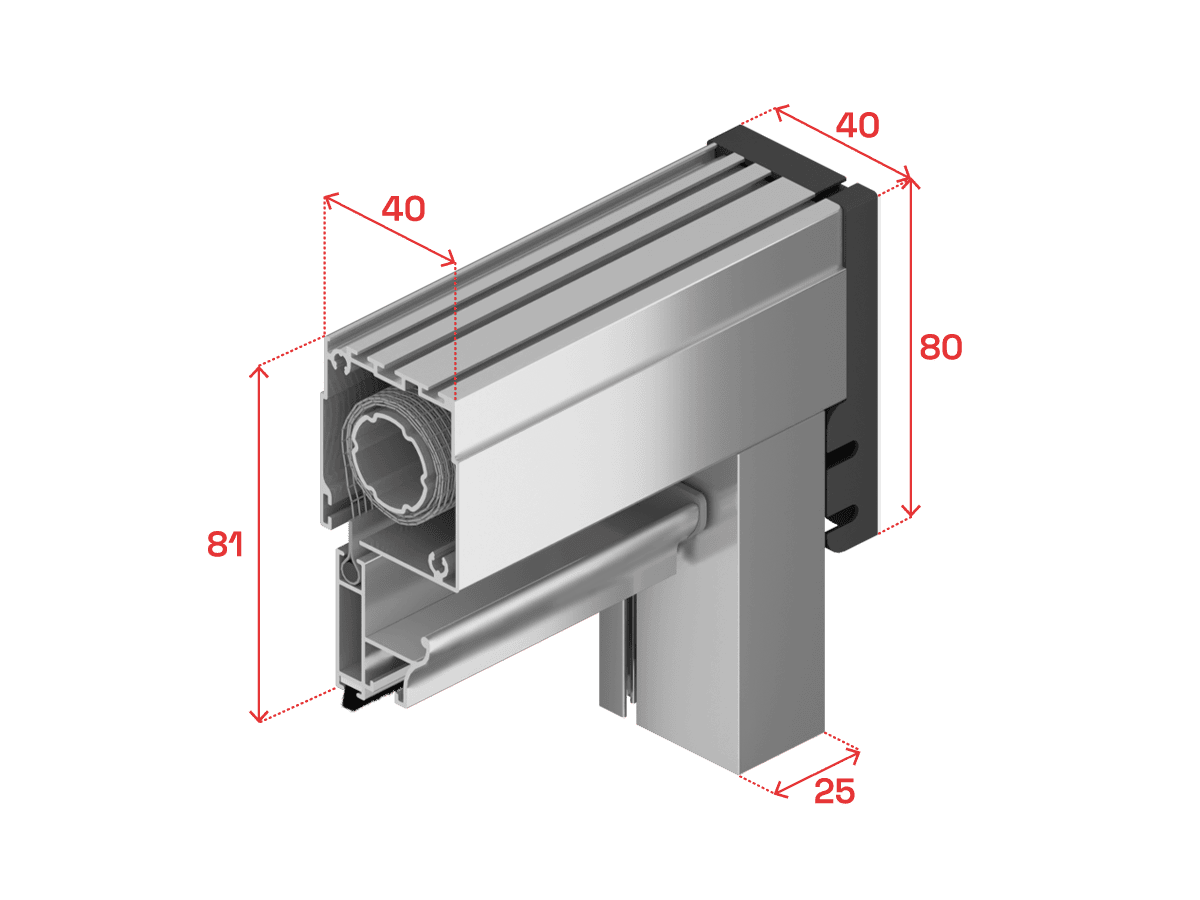

Box, handle bar, box end cap and side rail dimensions (dimensions in mm)

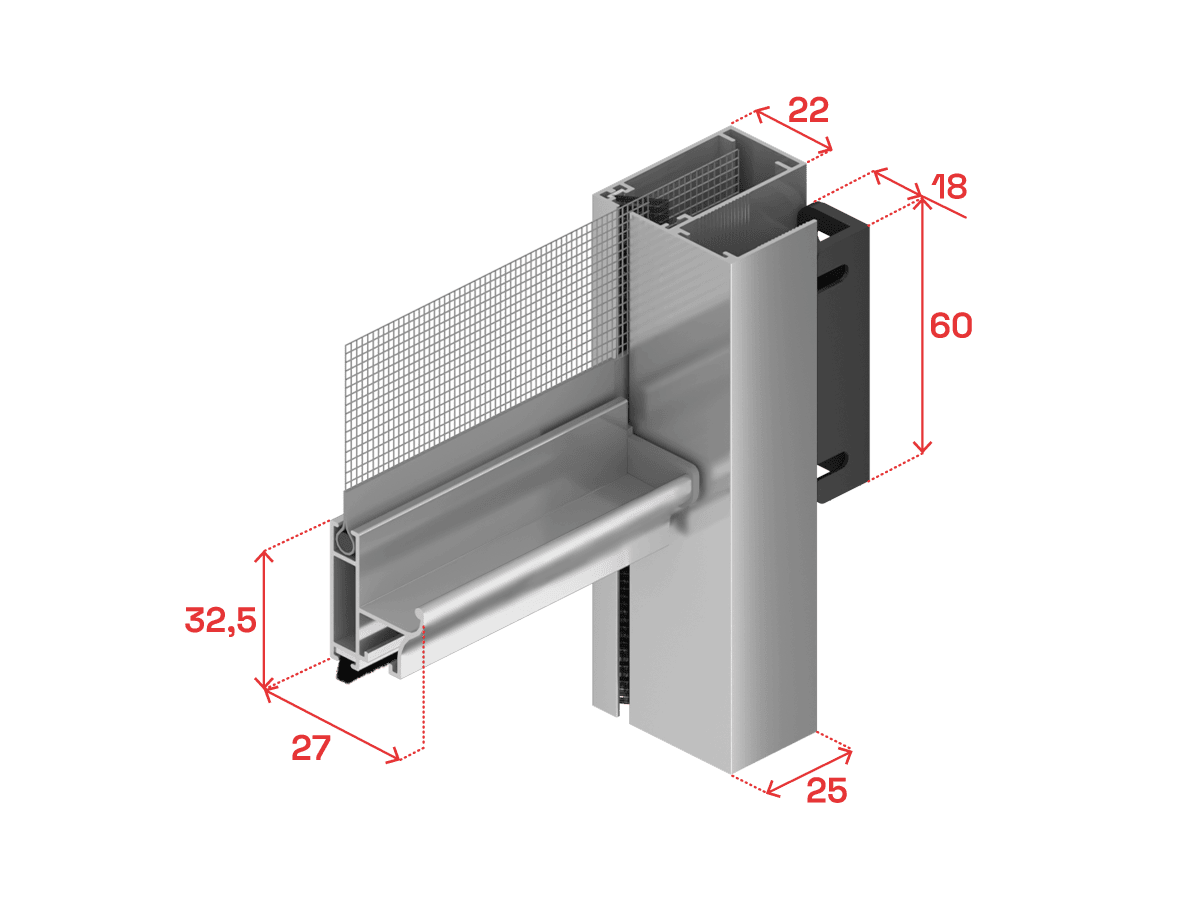

Handle bar, side rail and mounting insert dimensions (dimensions in mm)

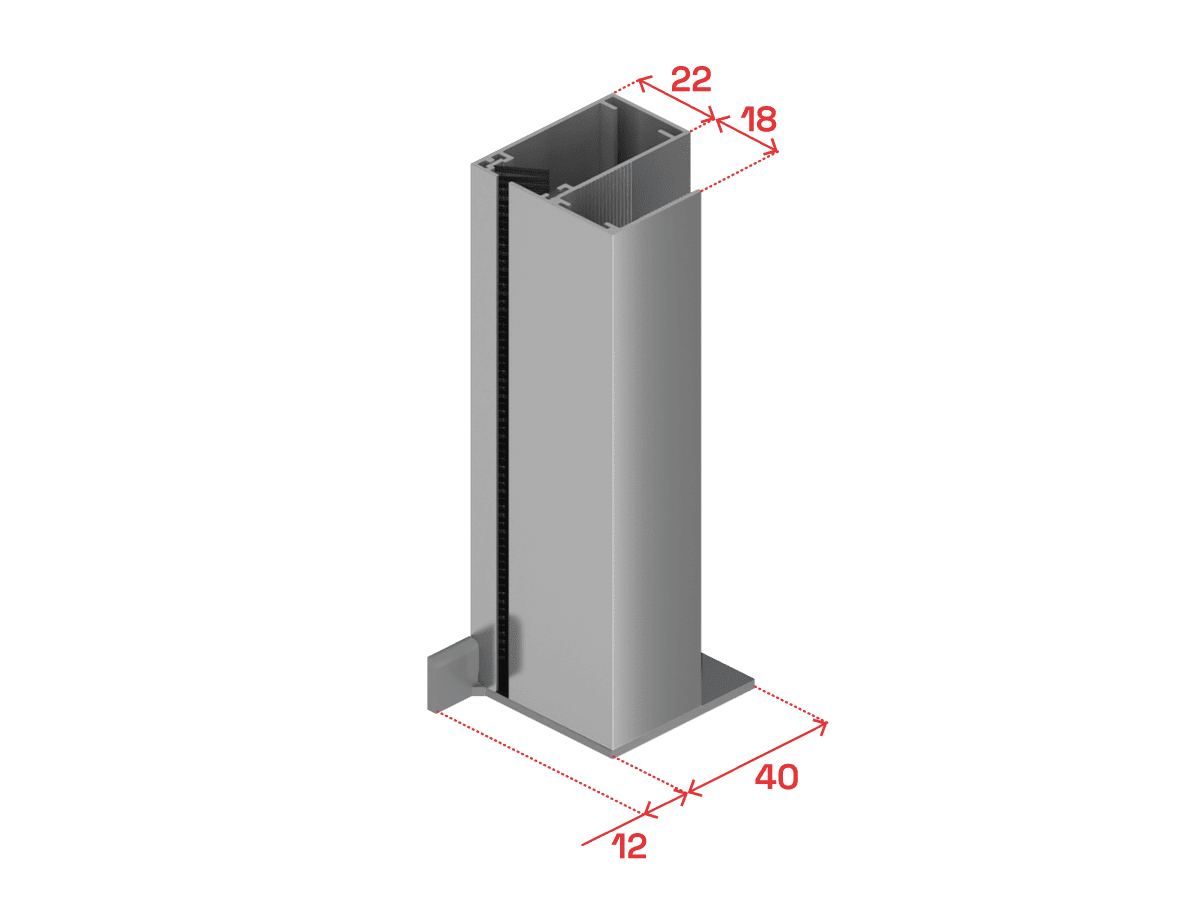

Side rail and handle cap dimensions (standard installation) (dimensions in mm)

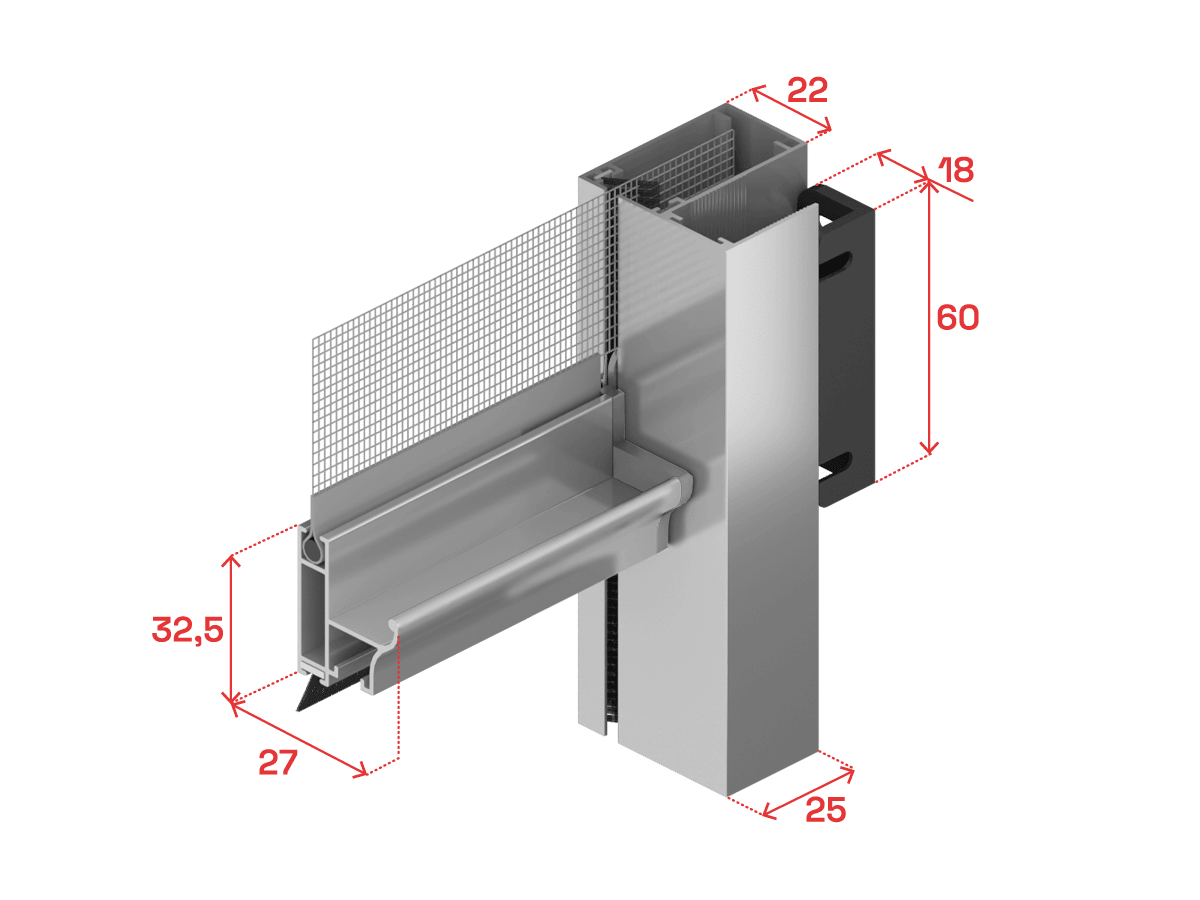

Side rail, PUSH closing handle bar (available on request) and mounting insert dimensions (dimensions in millimetres)

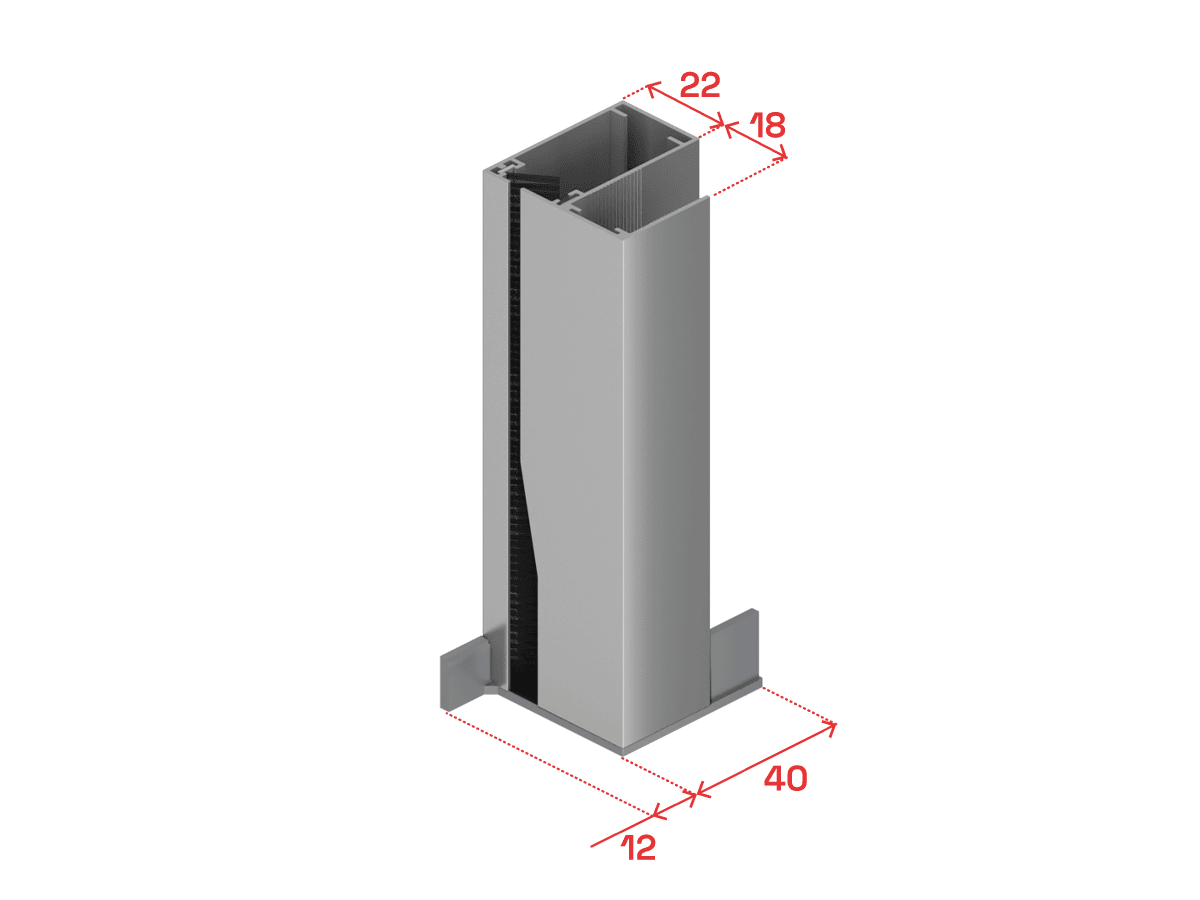

Side rail and PUSH closing handle cap dimensions (available on request) (dimensions in millimetres)
HORIZONTAL section /WIDTH Ordering size = Clear dimension + 78 mm (including 2 mm tolerance)
VERTICAL section/HEIGHT Ordering size = Clear dimension+ 43 mm (including 2 mm tolerance)

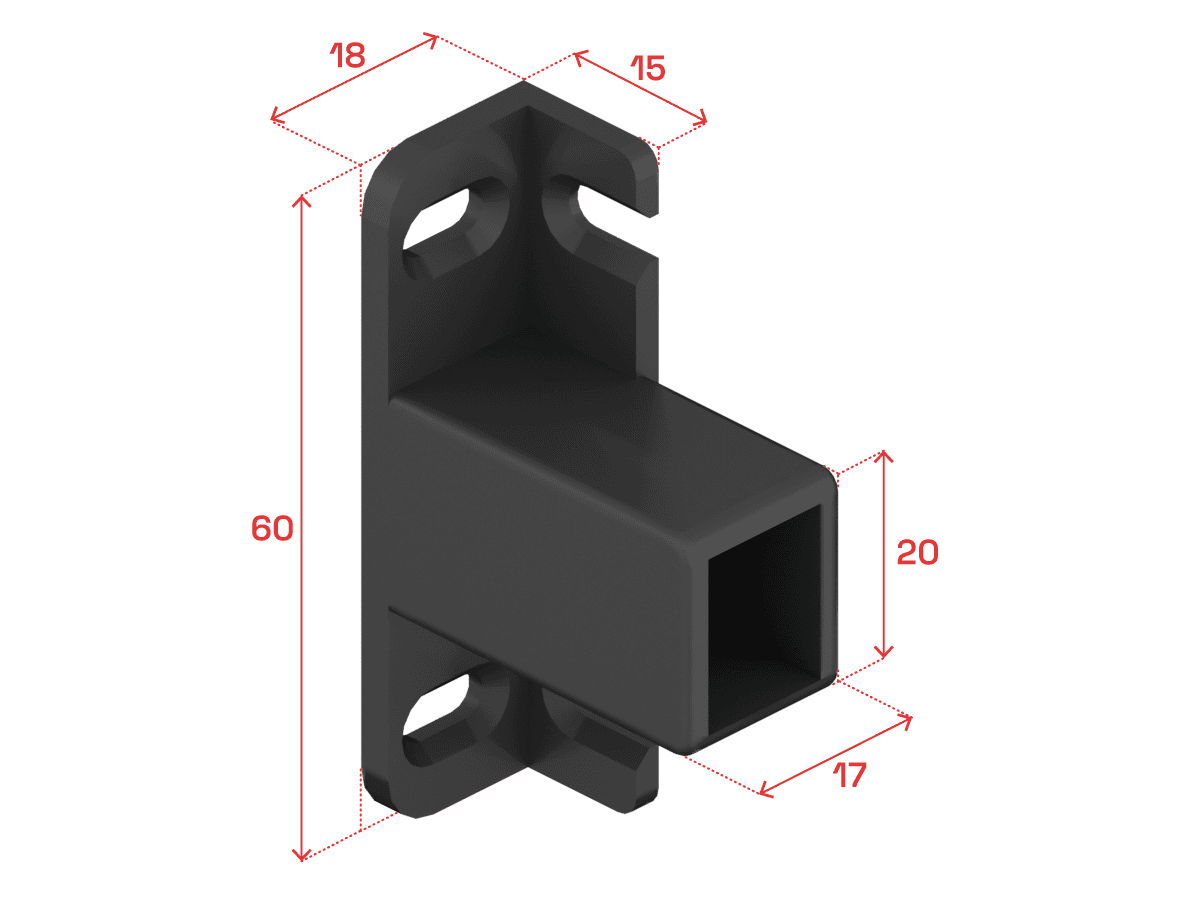

Mounting insert dimensions (dimensions in millimetres)
Colours
-
9019010 Glossy WhiteAccessories
White -
9FG9010 Rough WhiteAccessories
White -
1011013 Glossy IvoryAccessories
Ivory -
F1G1013 Rough IvoryAccessories
Ivory -
8018017 Glossy BrownAccessories
Brown -
MMURough Musk BrownAccessories
Brown -
APRPainted SilverAccessories
Silver -
71G7001 Rough GreyAccessories
Silver -
NOP9005 Matt BlackAccessories
Black -
BVEPainted BronzeAccessories
Bronze -
F35Dark BronzeAccessories
Black -
91P9010 Matt WhiteAccessories
White -
7017016 Anthracite GreyAccessories
Black -
DR1Bright RenolitAccessories
Brown -
D81R811 Dark RenolitAccessories
Brown
Known colors
Box end caps and accessories colours – 40 Vertical
In the 40 Vertical fly screen, the box end caps are always black, while the visible accessories are colour-matched to the selected profile finish.
The accessory colours correspond to those shown in the chart above for each finish.
The images and previews shown on this website are for illustrative purposes only.
Colour rendering on screen may vary from one device to another or depending on individual display settings and does not represent a binding reference.
For wood-effect, painted, or sublimated finishes, slight variations in tone, grain, and texture are intentionally included to replicate the natural appearance of wood.
Minor differences in shade or finish — even between items from the same production batch — are normal and not considered manufacturing defects, as they do not affect the product’s quality or functionality.
For a more accurate colour assessment, please refer to the physical colour chart.
In the event that the colour in the colour card is no longer available in stock, the order will be processed within 15 working days from the date of order confirmation and handled with the relevant colour price accordingly to the reference.
In the event the colour chosen is outside the colour card, the order will be processed within 25 working days from the date of order confirmation and handled with the relevant surcharges.
Optional / Notes
OPTIONAL
PUSH closing system
With the optional PUSH handle, you can open and close the fly screen with a simple and precise movement.
Order code:_ I4P
NOTE
Accessories and box end caps
Coloured accessories but box end caps are only available in black.
