78 Amby

Aluminum fly screen with black pleated mesh, or gray, ideal for windows and doors.

The flush-mounted installation includes a 78 mm spacer that houses both the fly screen and the guide for the shutter. The pleated mesh has two colors: black as standard or gray on request. The bottom guide has a height of 15 mm. Also, depending on your design, you can choose single or double shutter model, with central or asymmetrical handle, and with magnetic closure.

Dimensions

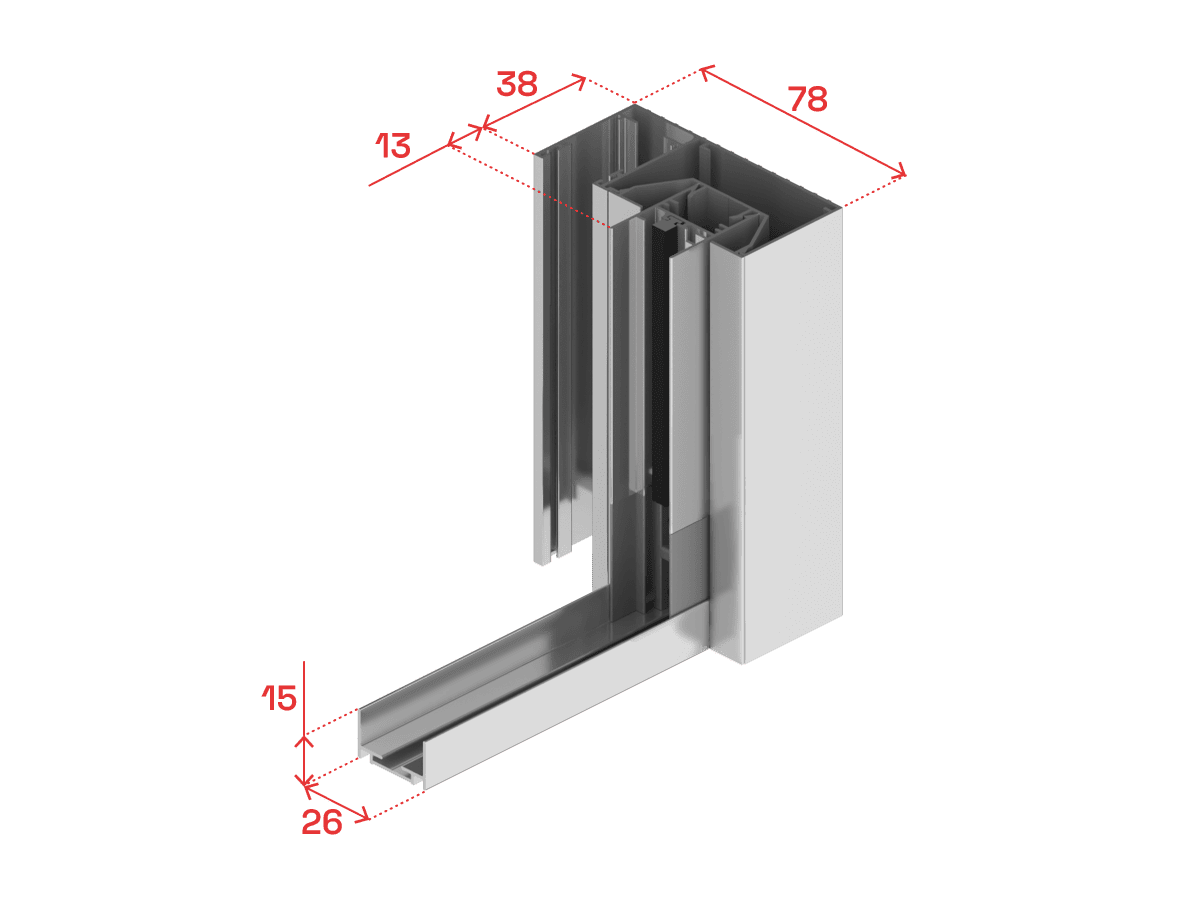

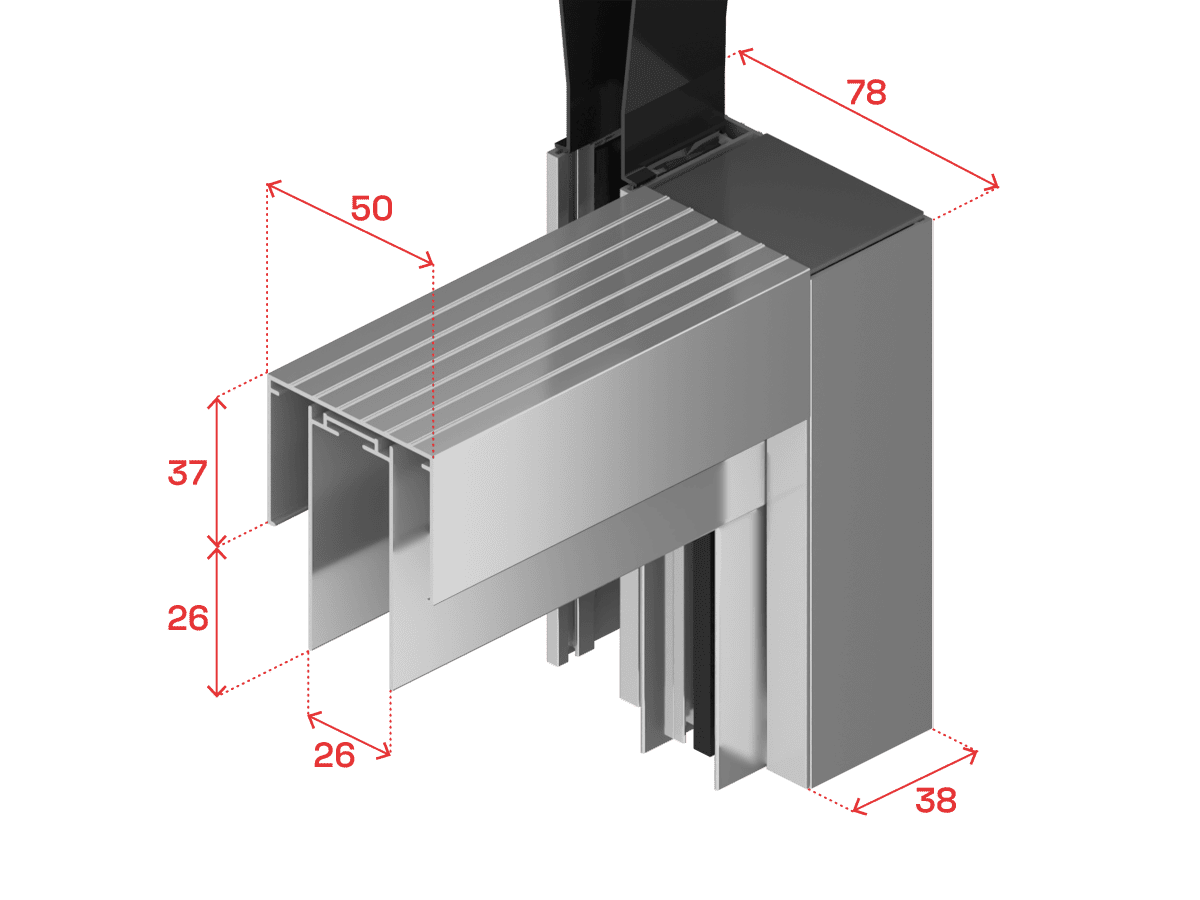

Spacer 78, front roller box/end-side and roller box dimensions (dimensions in mm)

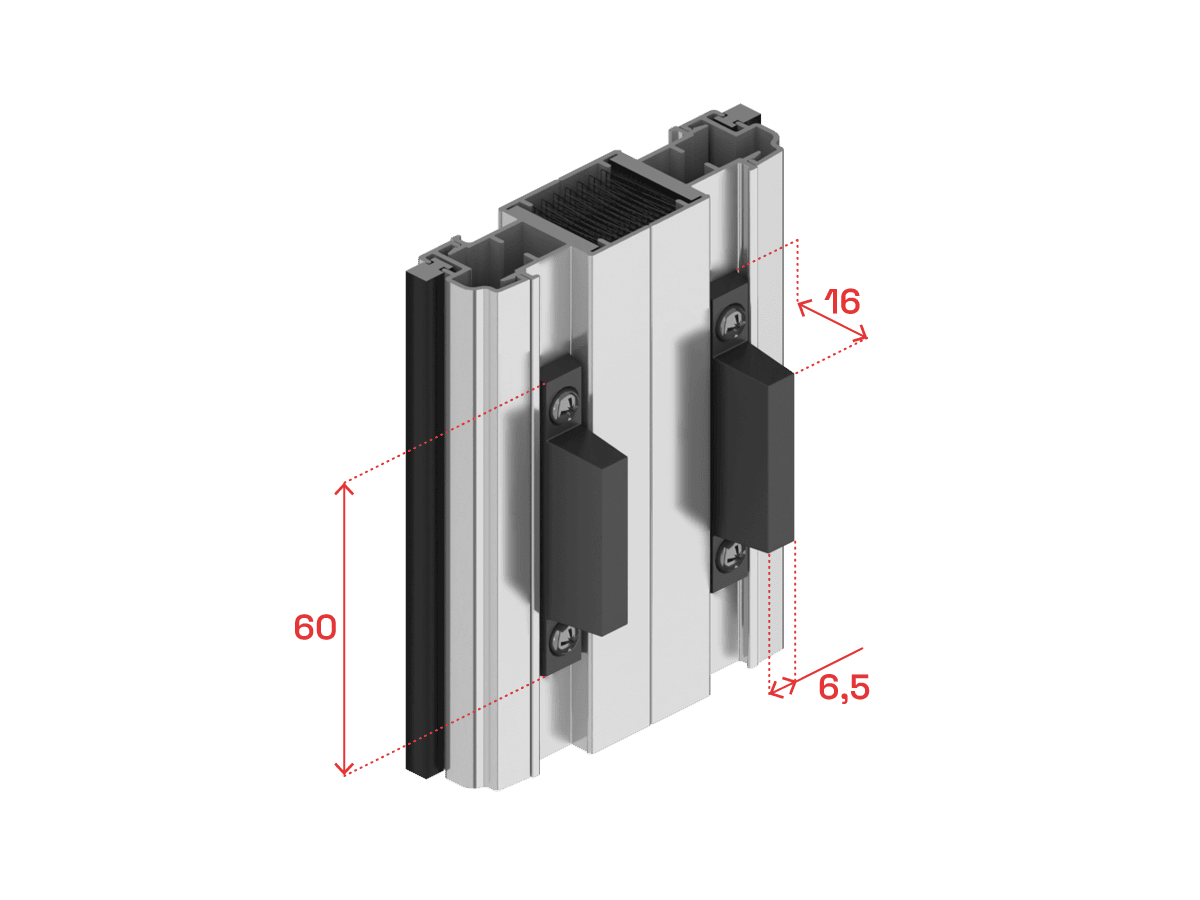

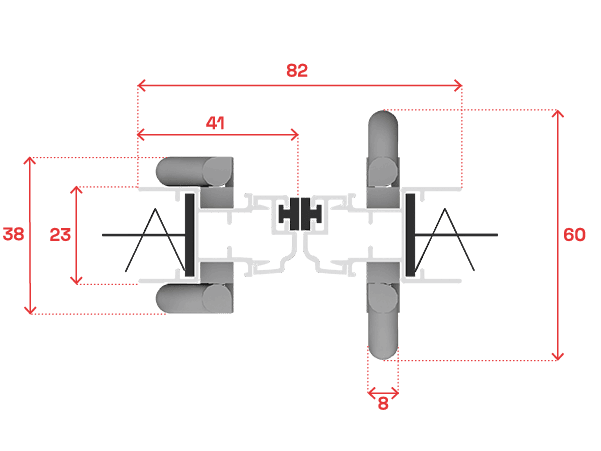

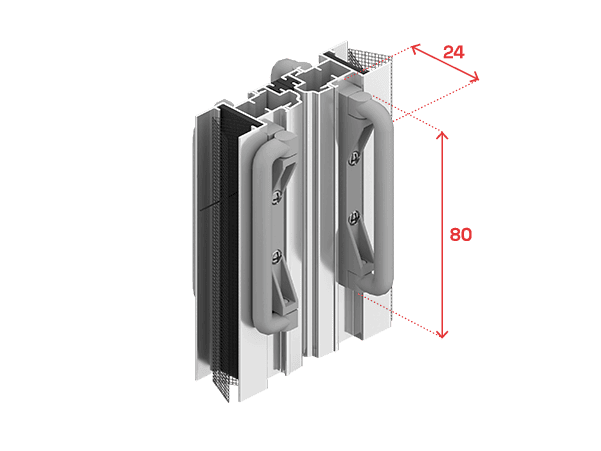

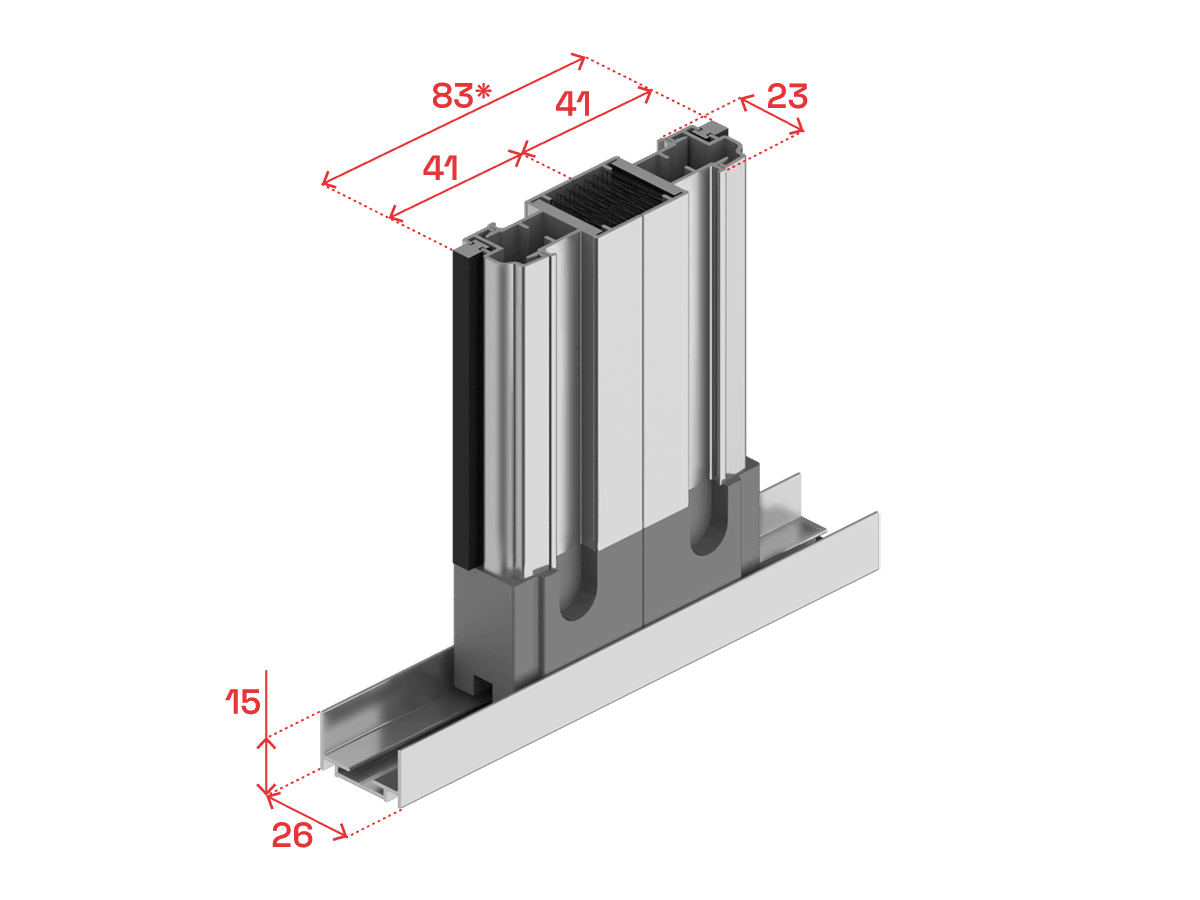

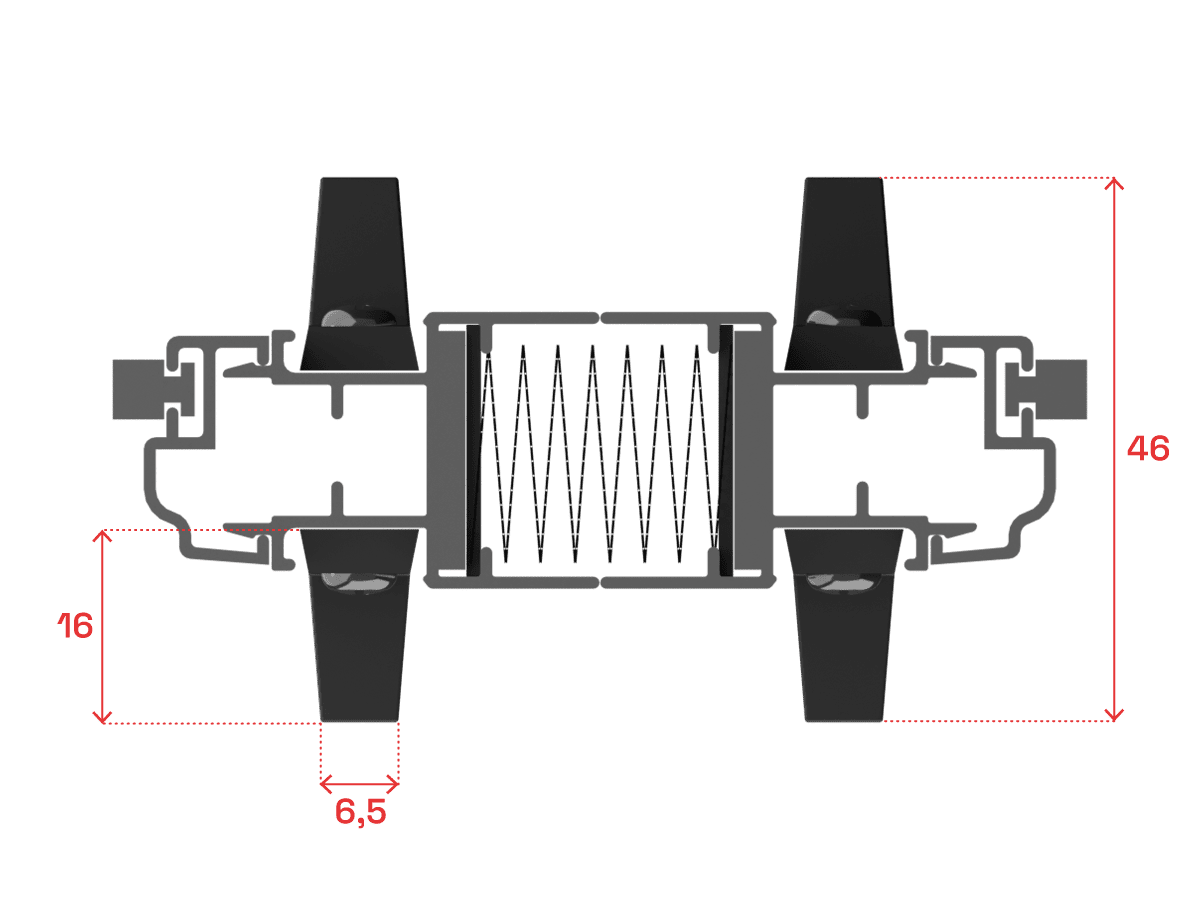

Dimensions of coupled handles (closed insect screen) and bottom track (dimensions in mm)

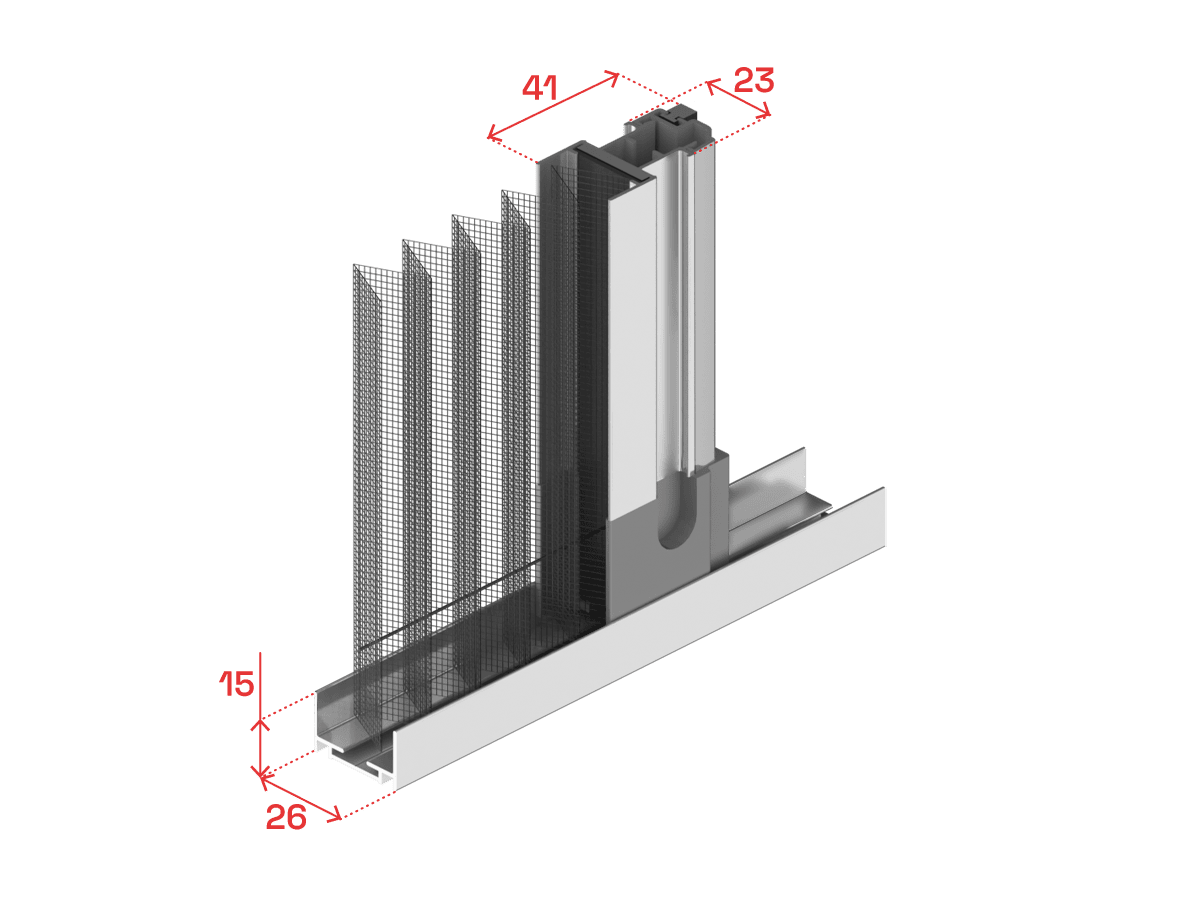

Dimensions of handle and bottom guide (dimensions in mm)

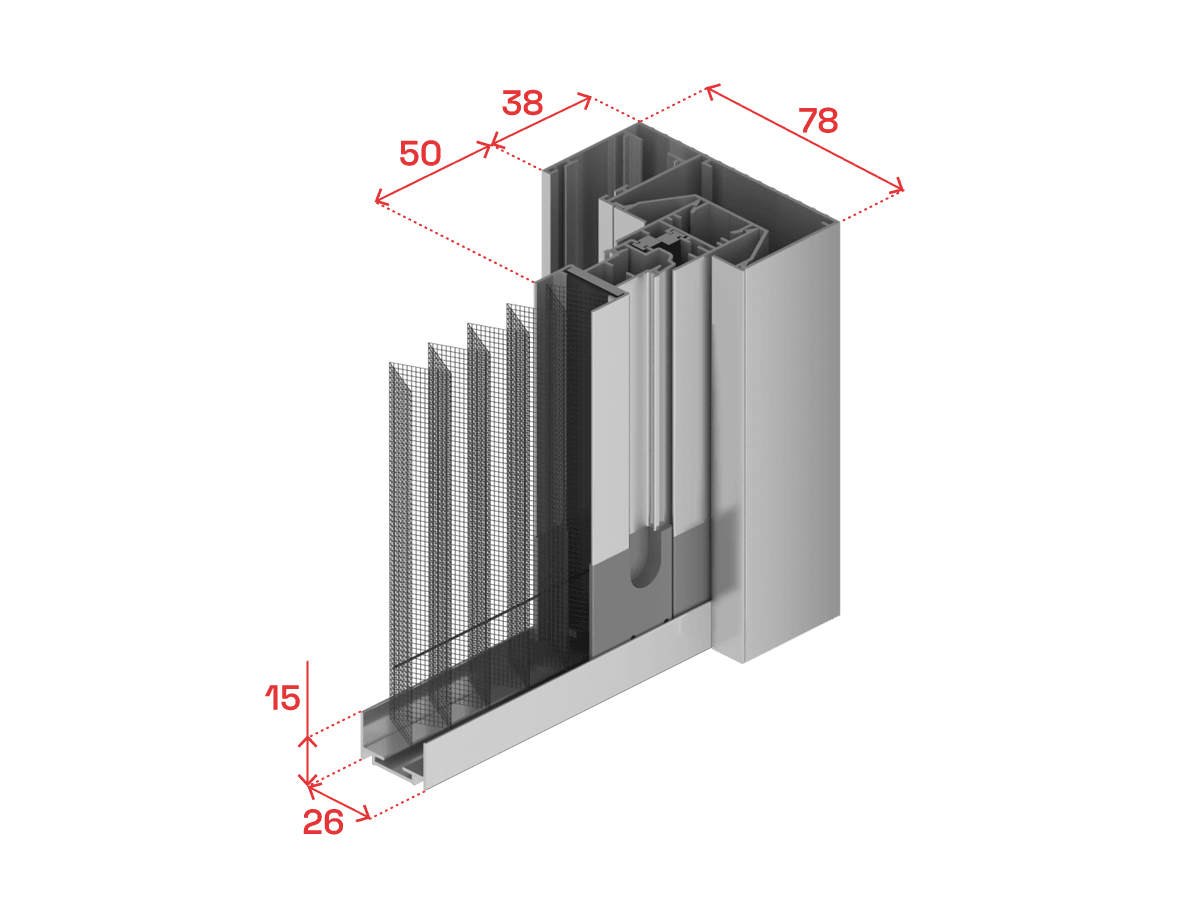

Dimensions of spacer 78, front rollerbox/end-side, end-side, handle and bottom guide (dimensions in mm)

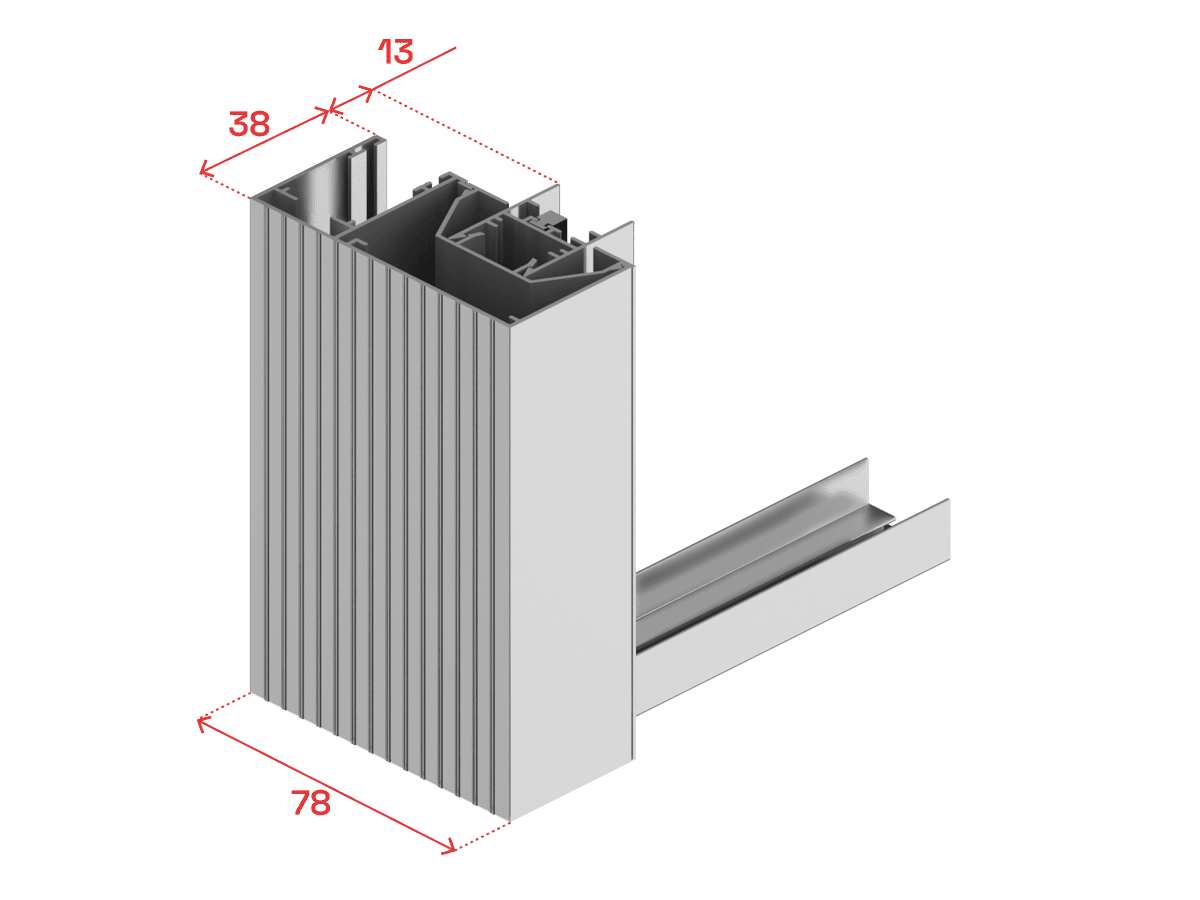

Spacer 78, front roller box/end-side, end-side and top guide (dimensions in mm)

Sheeting and measures

Towels	Cod.	Description	MAX
Towels	Cod.	Description	MAX		PGR	Grey Pleated Mesh	1800x3200
	PGN	Black Pleated Mesh	1800x3200

Towels	Cod.	Description	MAX
Towels	Cod.	Description	MAX		PGR	Grey Pleated Mesh	3600x3200
	PGN	Black Pleated Mesh	3600x3200

Colours

Optional / Notes

OPTIONAL

Fixed handles

Instead of folding handles, fixed handles can be ordered on request.

Lower bottom guide

The lower bottom guide has a height of 8.5 mm (the standard bottom guide has a height of 15 mm) and is only available in black. With this optional extra the overall size of the fly screen increases to 40mm.
