50 Zaffiro

Aluminum fitted flyscreen with spring-loaded operation and advanced system.

Flush mounting is done using a 50-mm guide, while electro-welded fiberglass mesh at the edges. The spring-loaded operation allows you to apply a clutch to slow down closing if desired. Depending on your space, you can choose the single or double shutter model, with central or asymmetrical magnetic closure. The roller box has a size of 45 mm. When ordering, remember for the 1-shutter version to specify the position of the roller box interior view if you would like to place it on the right or on the left.

Advanced fitted system
Thanks to the special PRIMED fitted system, spacer + front panel*, you can, with the simple replacement of the front panel, change the fly screen model in the future without having to do masonry work to replace the previously inserted fitted guides.

Dimensions

Sspacer 50, roller box and handle (dimensions in mm

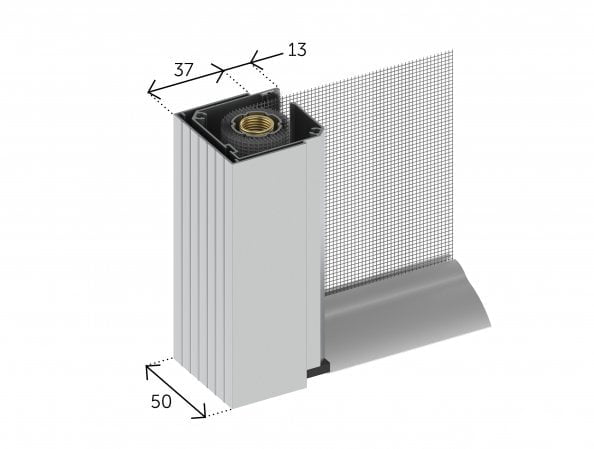

Spacer 50 and roller box dimensions (dimensions in mm)

Rail and handle dimensions (dimensions in mm)

Spacer 50, end plate and low rail dimensions (dimensions in mm)

Spacer 50, end face, handle and low rail dimensions (dimensions in mm)

Dimensions of Spacer 50 and top rail (Spacer 50 + recessed wrap-around guide front) (dimensions in mm)

Sheeting and measures

Towels	Cod.	Description	MIN	MAX
Towels	Cod.	Description	MIN	MAX	0	Grey Fibreglass Mesh	400x800	1400x2600
	RNE	Black Fibreglass Mesh	400x800	1400x2600
	BN	Striped Black-White Fibreglass Mesh	400x800	1400x2600

Towels	Cod.	Description	MIN	MAX
Towels	Cod.	Description	MIN	MAX	0	Grey Fibreglass Mesh	800x800	2800x2600
	RNE	Black Fibreglass Mesh	800x800	2800x2600
	BN	Striped Black-White Fibreglass Mesh	800x800	2800x2600
