50 Smart

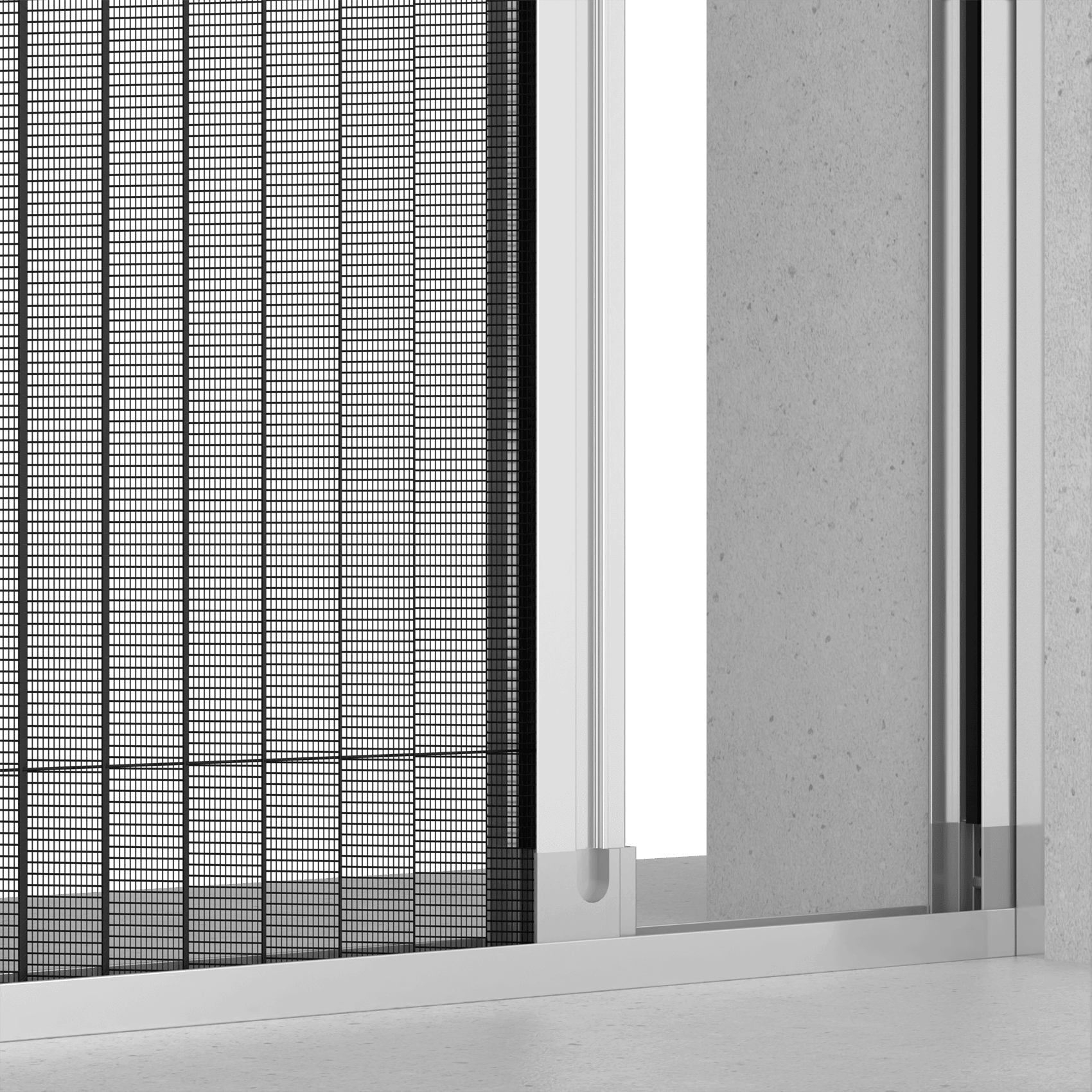

Aluminum fitted fly screen ideal for both windows and doors.

The pleated net of 50 SMART has two colors: black, standard, or gray, on request. The side-sliding movement features a magnetic lock. It is flush-mounted with a 50 mm rail. As standard, the fitted fly screen features a 15 mm bottom guide. You can choose to make it in either single or double shutter version, with central or off-center opening.

Advanced fitted system
Thanks to the special PRIMED fitted system, spacer + front panel*, you can, with the simple replacement of the front panel, change the fly screen model in the future without having to do masonry work to replace the previously inserted fitted guides.

Dimensions

Dimensions of spacer 50, front roller box/end-side, roller box and handle (dimensions in mm)

Dimensions of spacer 50, front roller box/end-side and roller box (dimensions in mm)

Dimensions of handle and bottom guide (dimensions in mm)

Dimensions of spacer 50, front roller box/end-side, end-side and bottom guide (dimensions in mm)

Spacer 50, front panel box/terminal, handle and bottom track dimensions (dimensions in mm)

Spacer 50, front roller-box/end-side, end-side and top guide dimensions (dimensions in mm)

Sheeting and measures

Towels	Cod.	Description	MAX
Towels	Cod.	Description	MAX		PGN	Black Pleated Mesh	1800x3200
	PGR	Grey Pleated Mesh	1800x3200

Towels	Cod.	Description	MAX
Towels	Cod.	Description	MAX		PGN	Black Pleated Mesh	3600x3200
	PGR	Grey Pleated Mesh	3600x3200

Colours

Optional / Notes

OPTIONAL

Fixed handles

Instead of folding handles, fixed handles can be ordered on request.

Lower bottom guide

The lower bottom guide has a height of 8.5 mm (the standard bottom rail has a height of 15 mm) and is only available in black. With this option, the overall size of the fly screen increases to 40 mm.
