50 Amby

Fitted aluminum fly screen ideal for windows and balcony doors with small fixing spaces.

Pleated mesh is available in either black, as standard, or gray, on request. Flush-mounting is done with a 50-mm rail. The side-sliding movement features both right- and left-hand opening and magnetic closure. As standard, the fly screen comes with a 15 mm bottom guide. In addition, you can choose single or double shutter model, with central or off-center opening.

Advanced fitted system
Thanks to the special PRIMED fitted system, spacer + front panel*, you can, with the simple replacement of the front panel, change the fly screen model in the future without having to do masonry work to replace the previously inserted fitted guides.

Dimensions

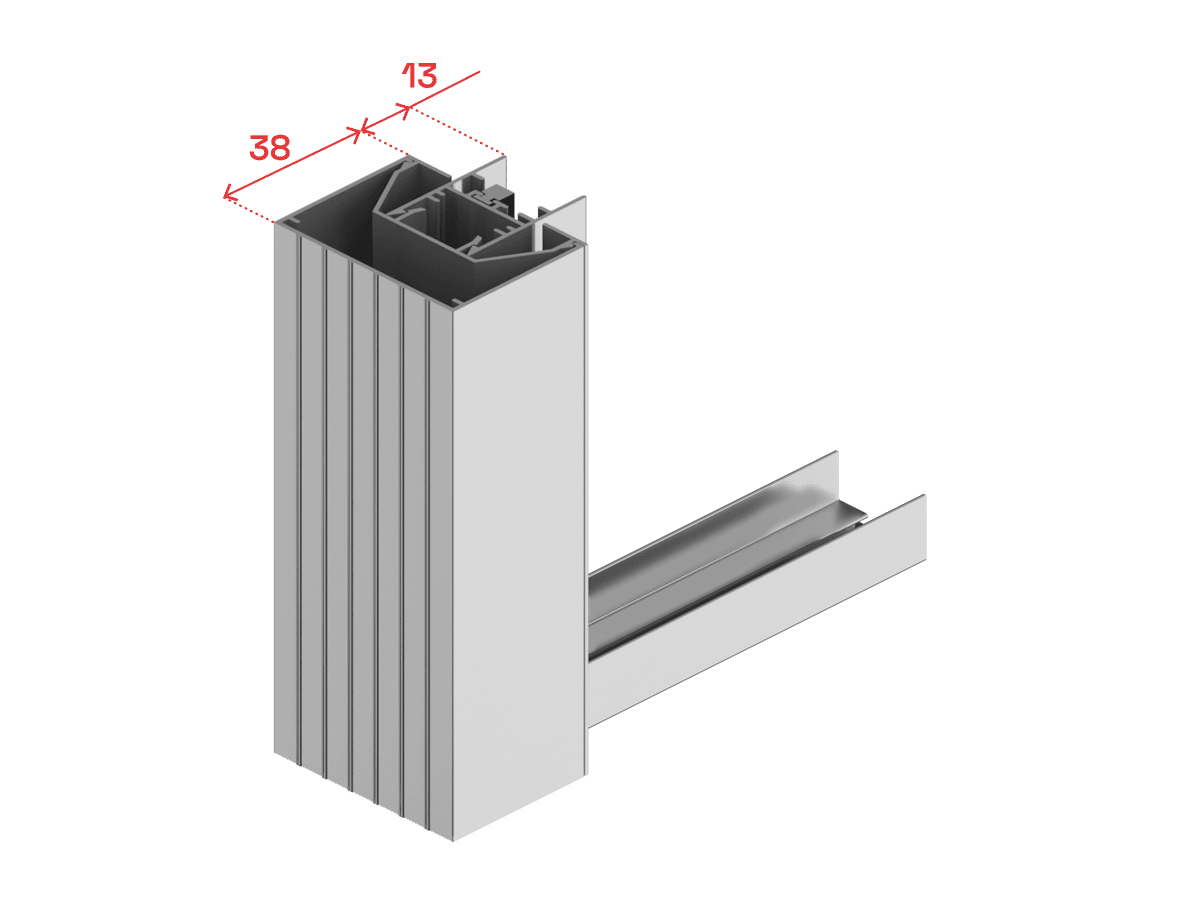

Spacer 50, front roller box/end-side and roller box dimensions (dimensions in mm)

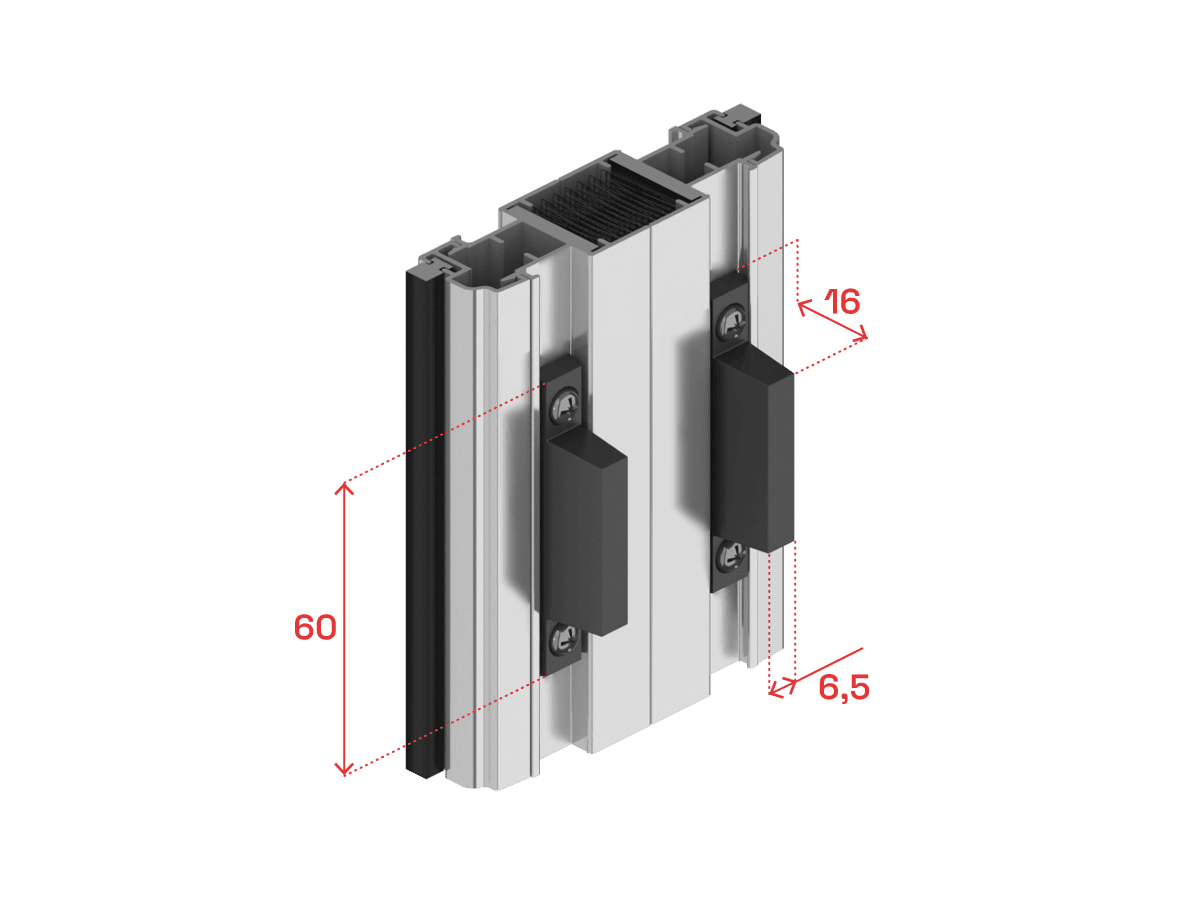

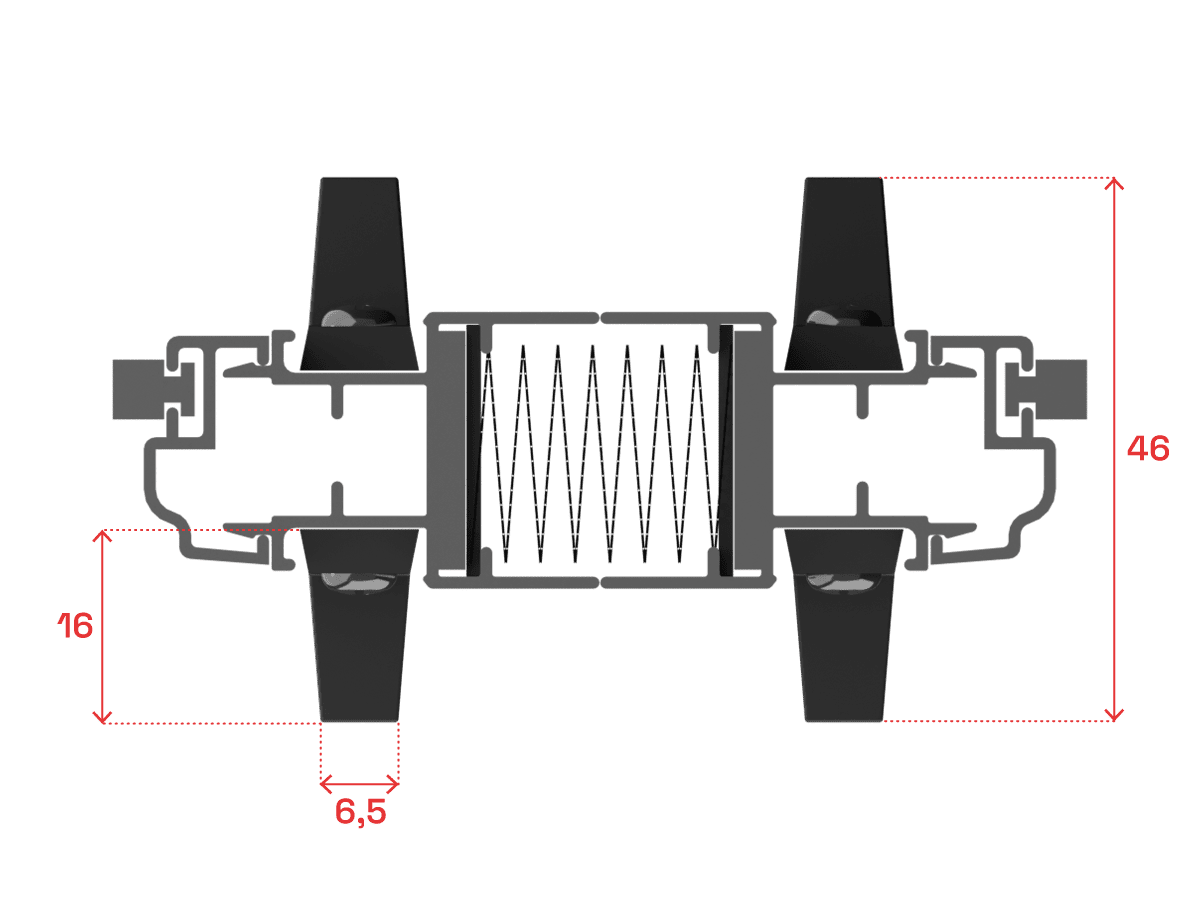

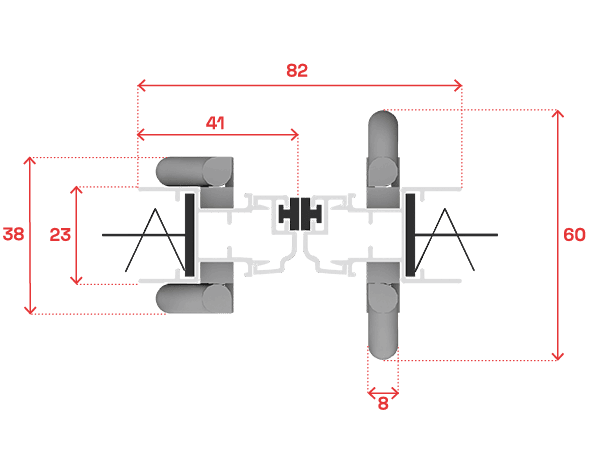

Dimensions of closed handles (dimensions in mm) *Dimension for model with minimum dimensions. Variable depending on the size of the base and therefore on the quantity of pleated net.

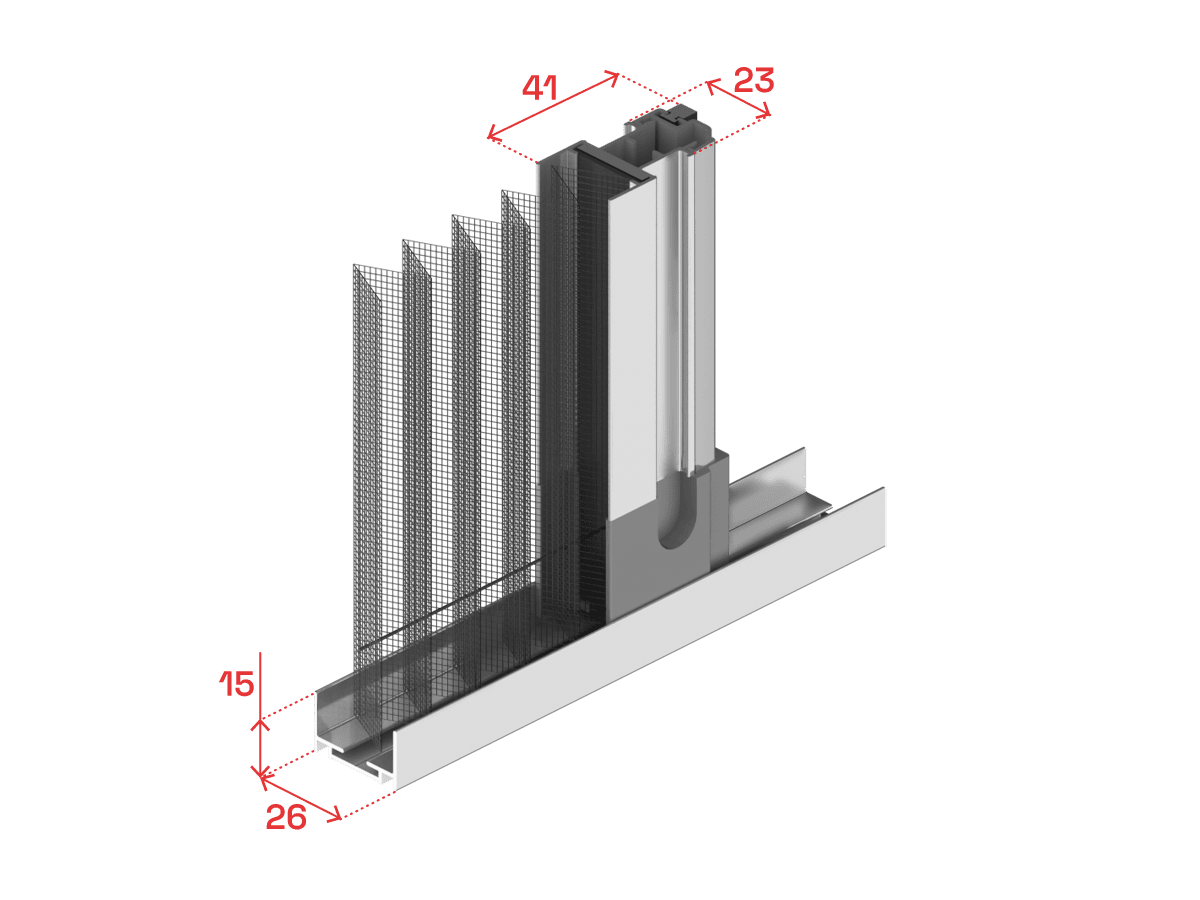

Single handle and lower guide dimensions (dimensions in mm)

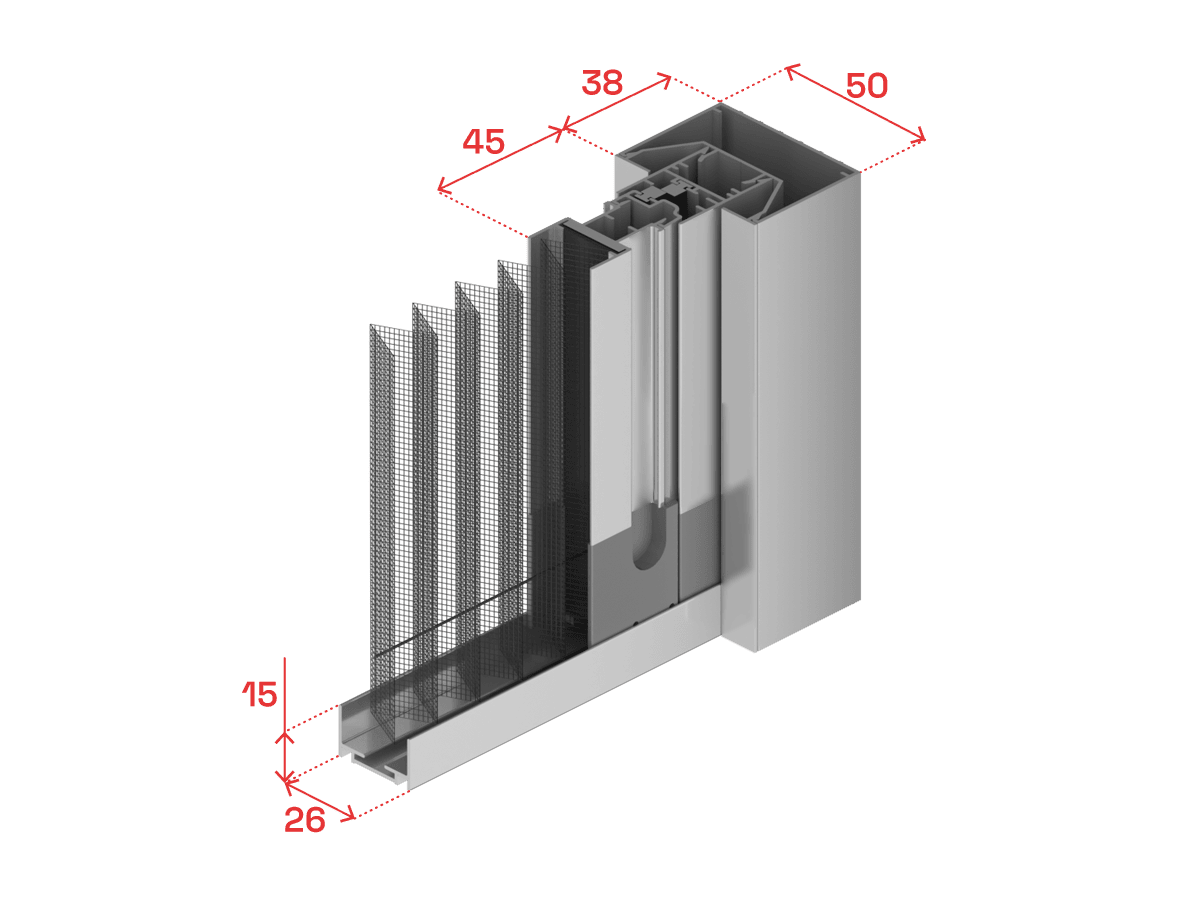

Spacer 50, front roller box/end-side, end-side and lower track dimensions (dimensions in mm)

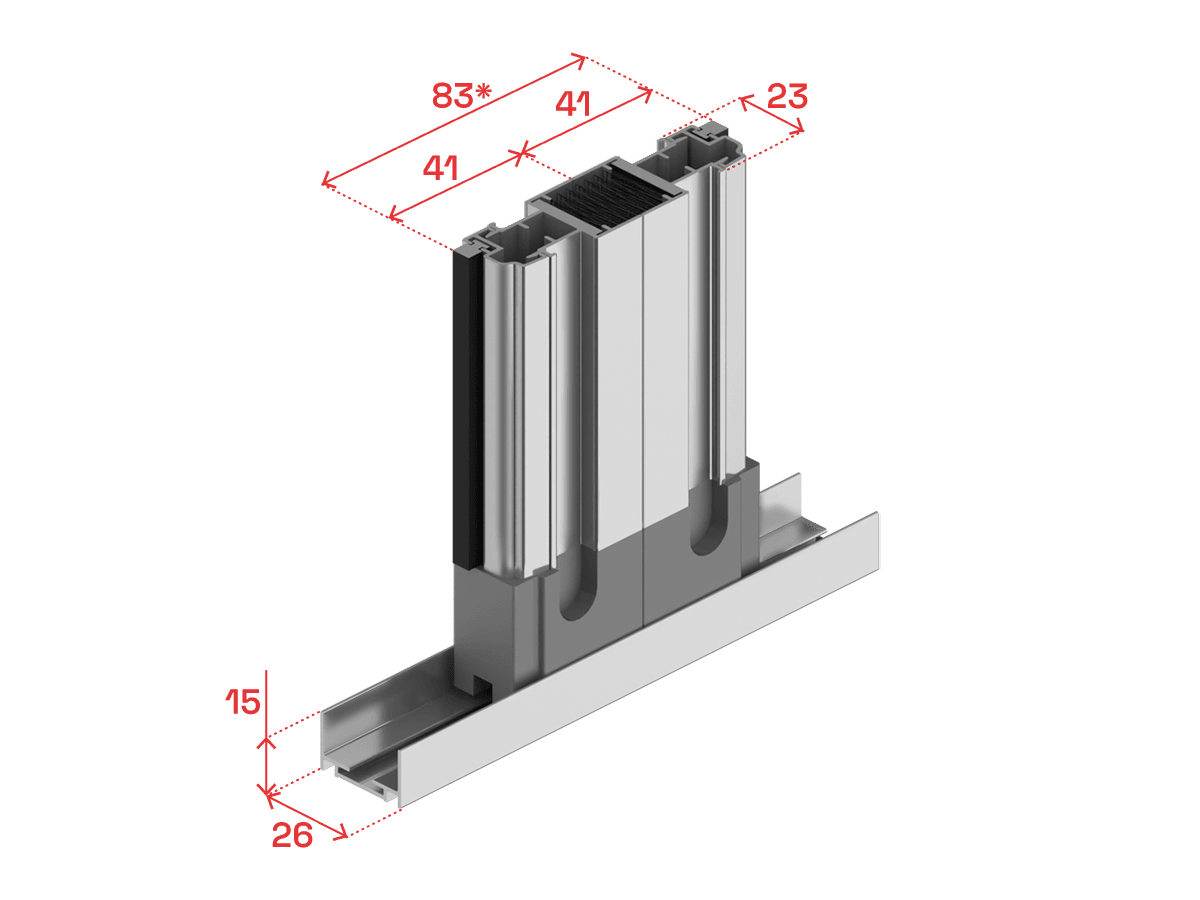

Spacer 50, front roller box/end-side, end-sidel, handle and lower guide dimensions (dimensions in mm)

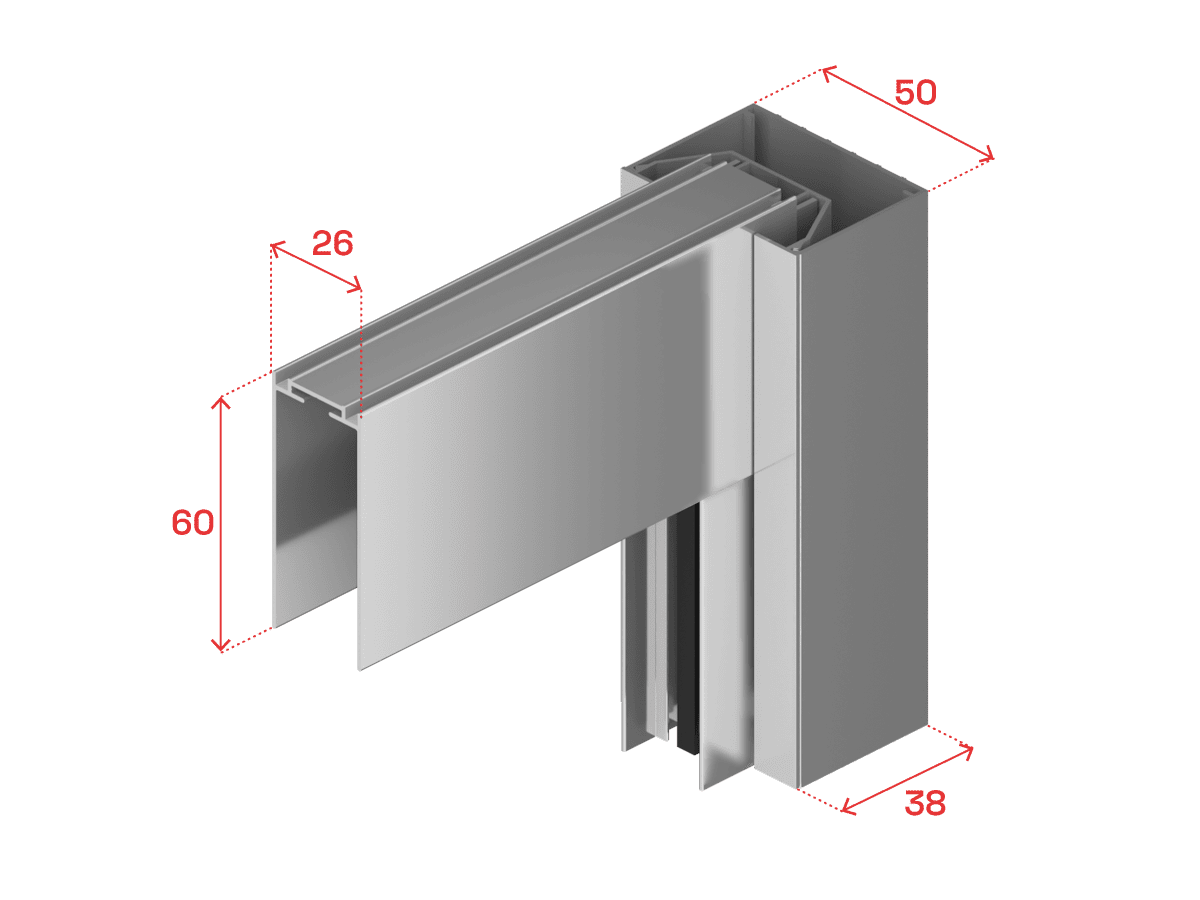

Spacer 50, front roller box/end-side, end-side and top guide dimensions (dimensions in mm)

Sheeting and measures

Towels	Cod.	Description	MAX
Towels	Cod.	Description	MAX		PGR	Grey Pleated Mesh	1800x3200
	PGN	Black Pleated Mesh	1800x3200

Towels	Cod.	Description	MAX
Towels	Cod.	Description	MAX		PGR	Grey Pleated Mesh	3600x3200
	PGN	Black Pleated Mesh	3600x3200

Colours

Optional / Notes

OPTIONAL

Fixed handles

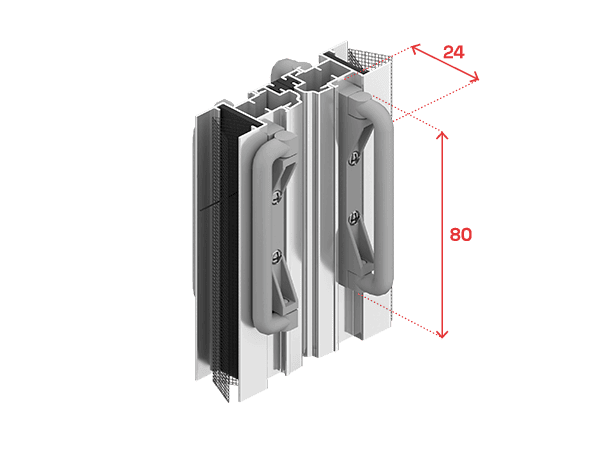

Instead of folding handles, fixed handles can be ordered on request.

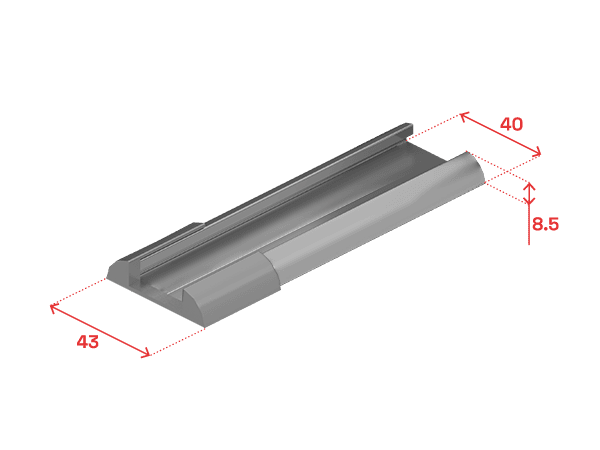

Lower bottom guide

The lower bottom guide has a height of 8.5 mm (the standard bottom rail has a height of 15 mm) and is only available in black. With this option, the overall size of the fly screen increases to 40 mm.
